Export/Import

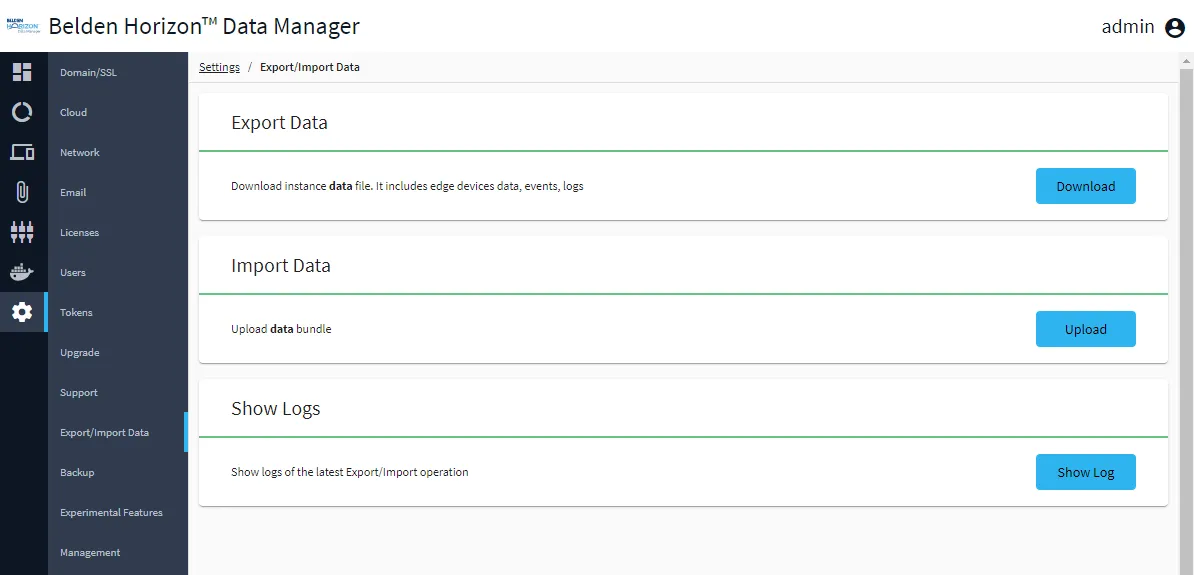

you can export and import data that is collected from a belden horizon data manager instance from the export/import module export data files may use encryption by adding a user defined password you can upload data files from your hard drive you can view logs of the latest export/import operation logs with an option to auto scroll the user interface below is for belden horizon data manager version 2 16 0 6and later export configuration note this option is no longer available from export/import data for belden horizon data manager version 2 16 0 and later to download an instance configuration, navigate to support > backup you can download an instance configuration from the export configuration section in the export / import module configuration files are password protected and generated as a tar file process logs are visible in the log section to download the configuration, you'll need the password of the belden horizon data manager instance export data you can download an instance data file from the export data section in the export / import module to export data, you'll need the password of the belden horizon data manager instance import configuration note this option is no longer available from export/import data for belden horizon data manager version 2 16 0 and later to import an instance configuration, navigate to support > backup you can upload a configuration bundle from the import configuration section in the export/import module to import the configuration, you'll need the password of the belden horizon data manager instance importing a configuration replaces configuration data and cannot be undone select the appropriate bundled zip file import data you can upload a data bundle from the import data section in the export/import module to import data, you'll need the password of the belden horizon data manager instance if a configuration already exists, as a best practice, you should export the data prior to using upload so you can revert, or you can create a backup of the entire system replacing the existing data files cannot be undone select the appropriate bundled zip file log you can view the latest export/import operation log from the log section in the export/import module you can t oggle auto scroll to the on position to automatically scroll down to the most recent messages in process log doing so helps monitor a running export/import process
