Belden Horizon Data Manager Us...
Product Features
Alerts
4 min

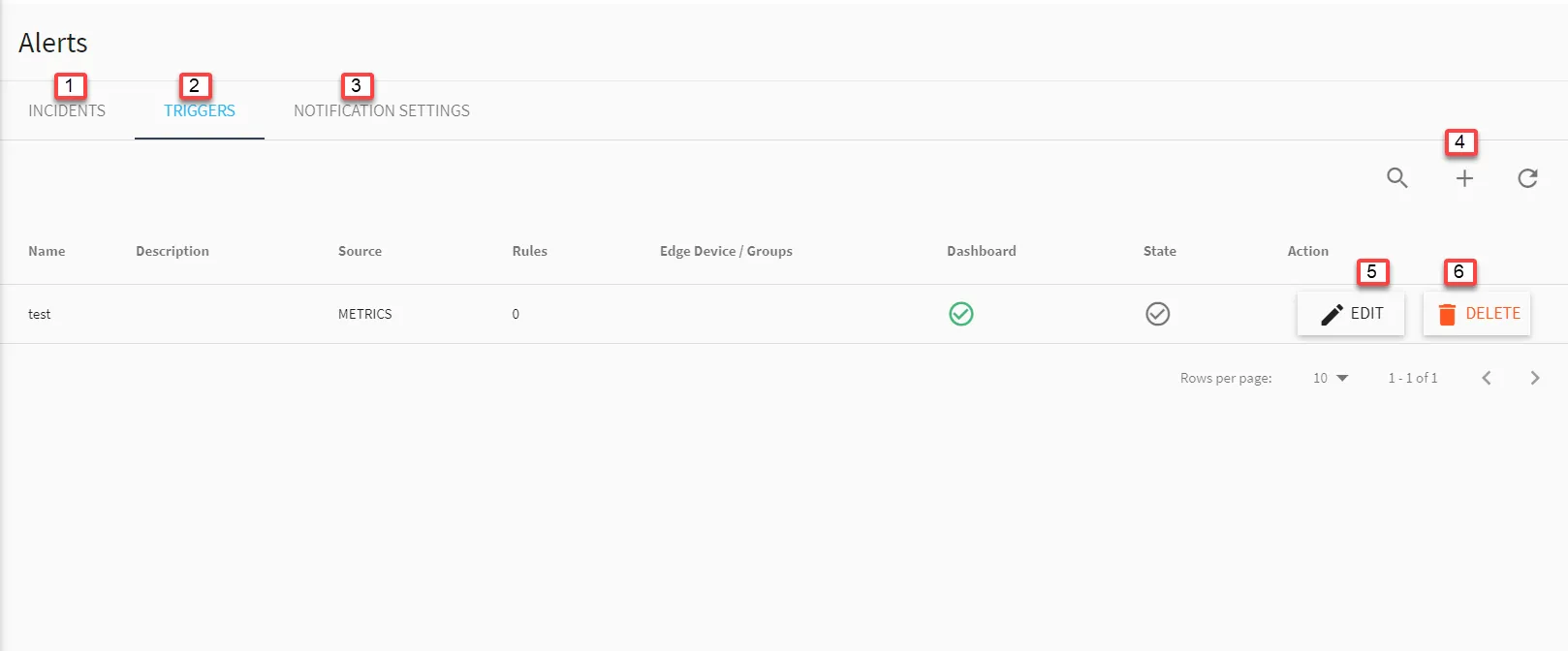

alerts occur when an event triggers an action you can add actions and triggers in the alerts module that can use events to send notifications review the following guides for setting up alert triggers docid\ drx03jilj7 t orxfbwoh ' docid 3o0 zzvweevum2ugc ujf the alerts module includes two sections incidents the incidents module includes a list of edge devices for which there is an incident incidents are generated alerts that are based on triggers system triggers are preloaded, and user triggers are created in docid\ qcrikcfexyjqabqjtkjmr the incidents pane includes filters for selection of a group list, state, and date range filters for opened before, opened after, closed before and closed after triggers the triggers section includes user defined triggers a trigger uses an event or a metric to trigger an action, which in turn sends a notification you can create, view and modify user defined triggers for the actions listed an alert occurrence is registered as an incident and is shown in the docid\ ltqiknn091cu2 f j8iij module the generated alert appears in the docid\ rqf 712p9bjvioy5qhe5a module and the docid\ rjlnyq0d gxqz0i5qnxfm tab in edge device details alert options email webhook slack pagerduty notification settings from the notification settings section, you can add, modify, and view actions that is used by a trigger the action sends a notification (email, slack, webhook, pagerduty) when a trigger is applied access alerts ui to access the alerts ui log in to belden horizon data manager select a company the projects pane appears do one of the following click a project from the project pane the dashboard pane appears for the project click the actions icon for a project, and then select view the dashboard pane appears for the project from the navigation panel, select alerts the alerts pane appears refer to the following actions you can take on the belden horizon data manager user ui's alerts pane the user interface below is for belden horizon data manager version 2 10 0 and later \[1] docid\ ltqiknn091cu2 f j8iij \[2] docid\ fouo99h0gbbmsyixfls3p \[3] docid\ xptlu4ddyamygaaflusnf \[4] add new trigger docid\ fouo99h0gbbmsyixfls3p \[5] edit trigger docid\ fouo99h0gbbmsyixfls3p \[6] remove trigger
