Templates
6 min

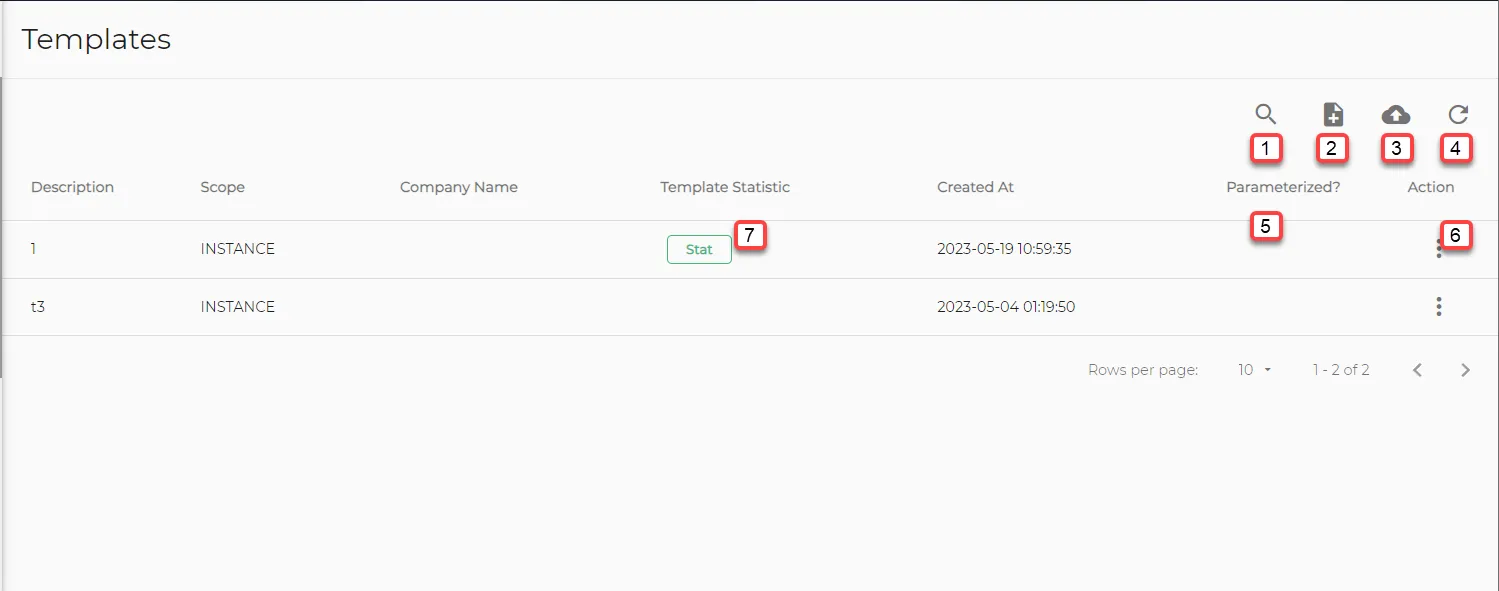

templates contain pre configured settings and configurations for edge devices from the templates pane you can create a template from an edge device or upload a template from a file for your edge devices you can access all templates available for an instance, an open company, or an open project from the templates pane you can create a template from an online edge device or upload a template from a file for an edge device after you have selected a company and opened a project templates for an instance are uploaded from the admin console templates for a company can be uploaded from a file templates for a project can be uploaded from a file or created from an edge device three scopes are defined for a template instance all companies for this belden horizon data manager company all projects for this company project only this project templates for edge devices may include devices, analytics, flows, and connectors you can make selections for these categories when creating a template from edge devices important before you can create a template, you must add one or more online edge devices in the edge devices pane you can select the scope for a template when you upload for example, if you upload a template from the company templates pane, the template is accessible to all the projects for that company if you upload a template from a project templates pane, the template is accessible to only that project when you modify a template, you can modify the scope by selecting company or project in the edit template dialog box you can apply, modify, parameterize, download and remove a template from the templates pane access template ui you can access company level templates and project level templates to access company level templates log in to belden horizon data manager select a company the projects pane appears from the navigation panel, select templates the templates pane for the company appears to access project level templates log in to belden horizon data manager select a company the projects pane appears from the projects pane, click a project tile the dashboard pane appears for the project from the navigation panel, select templates the templates pane for the project appears \[1] show filter search by description \[2] create template from device at least one edge device must be connected to use this option \[3] load template from file upload a simple template ( json ) or parameterized template ( zip ) \[4] reload template list \[5] docid\ bgao4d0c nyrohbrwggfi \[6] actions (project view only) apply template docid\ bfmzajwhhboyy0rfalk9b docid\ i t9fatn796hye4thzzeb edit template template scope cannot be changed from company to project docid\ bgao4d0c nyrohbrwggfi download template a json file when downloaded from the company list templates ui, the file contains information on all projects for the company when downloaded from the project list templates ui, the file contains information on only the project delete deleting a template makes it unavailable for users to apply download the template prior to removal so it can be re uploaded if necessary \[7] view template statistics (available for belden horizon data manager version 2 12 0 and later) next steps docid\ bgao4d0c nyrohbrwggfi docid\ bfmzajwhhboyy0rfalk9b docid\ i t9fatn796hye4thzzeb
