Edge Software Update

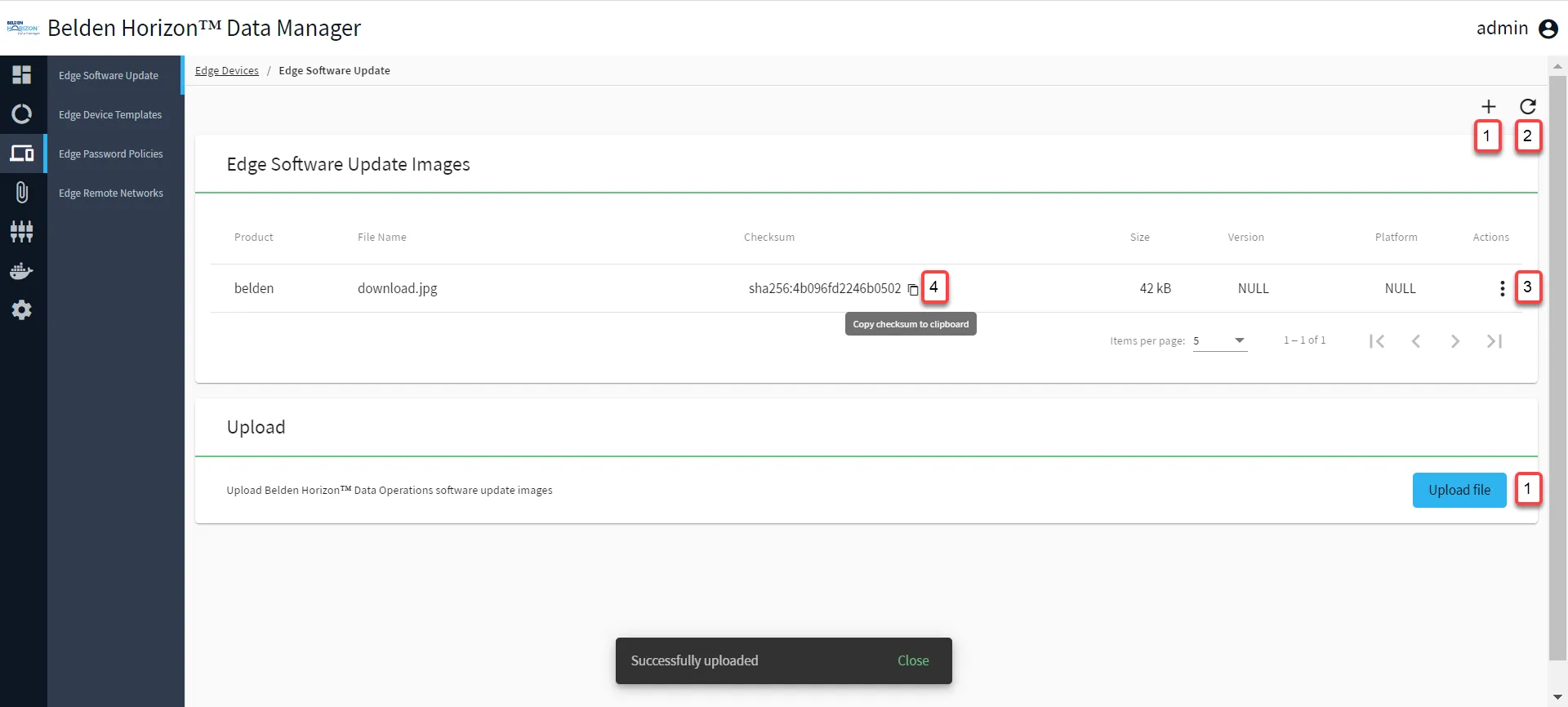

the edge software module provides you with all the tools needed to manage updates and upgrades of the edge devices managed by belden horizon data manager you can upload the upd file onto the admin console once and it can be used to upgrade edge devices using the belden horizon data manager admin console software update options all the images that you load onto the admin console are available for edge device upgrades you can create groups of edge devices and update them at a specific time or immediately using the upgrade options you can ensure that edge devices are running on the latest version, manage the disk space used, and view a history of updates the software images list shows product the product name file name the name of the upd file size the file size for the upd file version the version of the product platform the platform type access edge software update ui to access the edge software update ui log in to the belden horizon data manager (bhdm) admin console at the following url https //\[bhdm ip address] 8446 from the navigation panel, select edge devices edge device's edge software update pane by default appears refer to the following actions you can take on belden horizon data manager admin console edge device's edge software update pane the user interface below is for belden horizon data manager version 2 10 0 and later \[1] upload edge software image you can upload a software image using a file or a signed url example file name can be belden std 3 3 2 amd64 upd or belden std azure 3 3 2 amd64 upd \[2] refresh \[3] action menu remove \[4] copy checksum to clipboard troubleshooting firefox upload error when using the belden horizon data manager admin console with firefox to upload a software image, an error can occur due to a problem with the way firefox manages certificates belden horizon data manager uses a self signed certificate this prompts the browser to display an error message follow the browser guidelines for how to bypass a self signed security error message resolution to resolve this issue, the certificate for the minio application, which manages the uploaded images, must be accepted to accept the certificate for the port 8445 from the firefox web browser, enter the ip address and port 8445 (for example, https //192 162 2 18 8445 ) in the url bar, and then press enter click advanced click accept the risk and continue close the browser tab no login is required
