Create an Email-Alert Based Trigger for Connector Online Status
In this use case, you'll set up an alert and a trigger for the default MQTT SSL connector in Belden Horizon Data Operations (BHDO) that connects to Belden Horizon Data Manager (BHDM). Then you will simulate a disconnection for the connector to trigger the alert.
Before You Begin
- You will have to enable SMTP from the Belden Horizon Data Manager Admin Console. See Email to learn more.
- If you haven't yet connected your BHDO instance to BHDM, see Activate an Edge Device. A BHDO instance needs to be activated in BHDM before it can trigger alerts.
Step 1: Set Up an Email-Alert based Trigger
In this step you'll create an email notification alert. Next, you will create a trigger that will use the email notification alert. See Alerts for additional details.
From Belden Horizon Data Manager, navigate to Alerts and follow the steps below.
Step 1a: Set Up an Email Alert
To set up an email alert:
From the Alerts pane, click the Add new Action icon. The Add new Action dialog box appears.
- From the Add new Action dialog box, enter the following details:
- Action Template: Select EMAIL.
- Action Name: Enter an action name.
- Enter email: Enter an email address that will receive the alert.
- Notifications Limit: Enter 1.
- Interval: Select minute.
- Click Add. The newly created action appears in the Action List.
Step 1b: Set Up a Trigger
To set up a trigger:

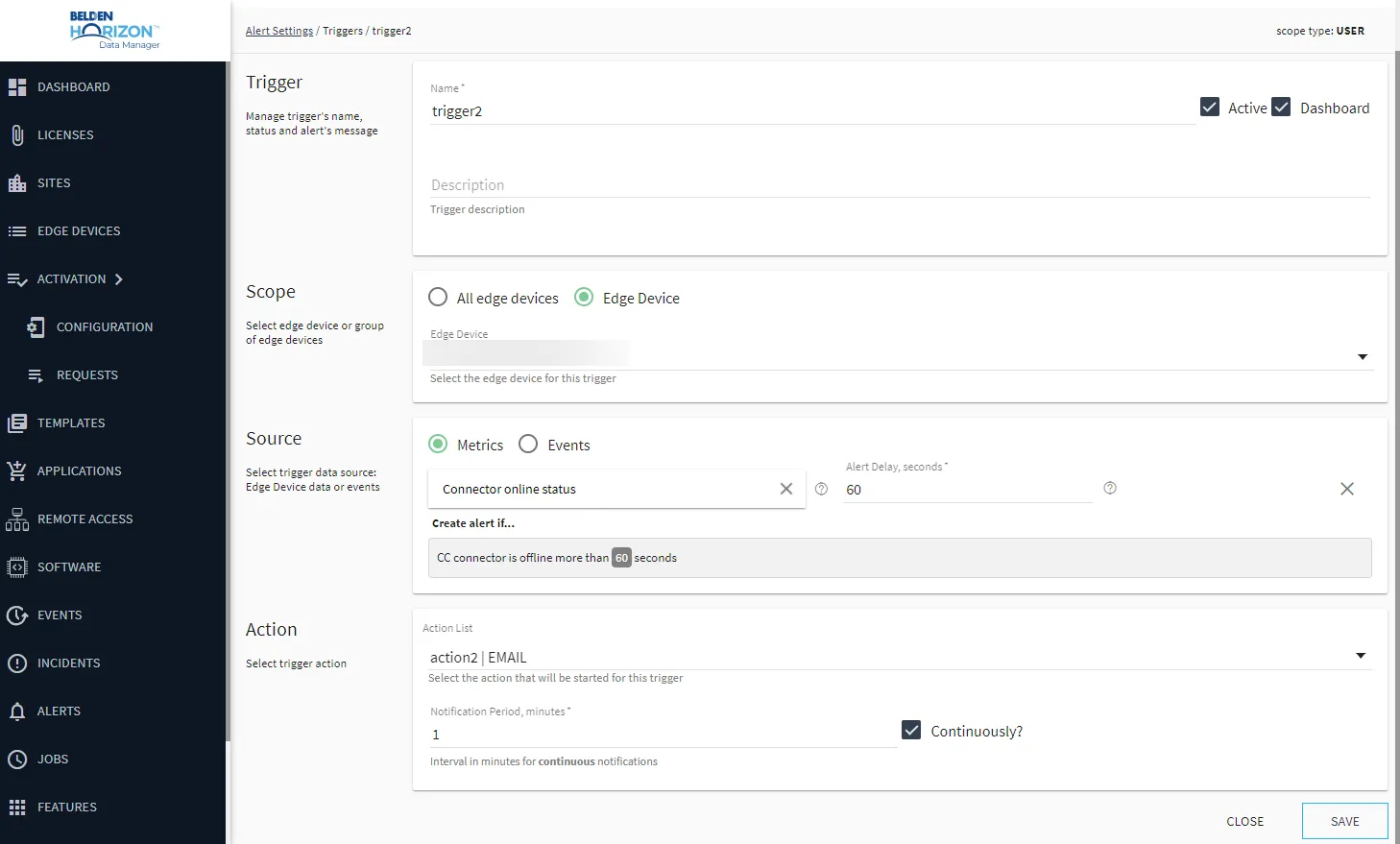

From the Alerts pane, click the Add new Trigger icon. The New Trigger pane appears.
- From the New Trigger pane, configure the following sections.
Trigger
- Name: Enter a name for the trigger.
- Active: Select the checkbox.
- Dashboard: Select the checkbox.
- Description: Enter a description for the trigger.
Scope
Select Edge Device and select the appropriate BHDO instance.
Source
- Select Metrics as the source of the trigger.
- Click Add new rule.
- Select Alert template: Select Connector online status.
- Enter the value 60 for Alert Delay, seconds.
Action
- Action List: Select the action you previously created.
- Continuously: Select the checkbox to send notifications continuously.
- Notification Period, minutes: Enter 1.
When done, click Save. The alert trigger appears in the Trigger List.
Step 2: Simulate a Disconnection
From BHDO you will simulate a disconnection with BHDM.
To simulate a disconnection:
- Log in to Belden Horizon Data Operations.
- From the navigation panel, select Integration. The Integration pane appears.
- From the generic-mqtt-ssl tile, click the toggle to disable the connector.
Step 3: Verify Successful Trigger and Alert
From Belden Horizon Data Manager, you will verify the simulated disconnection.
To verify the trigger and alert:
- Log in to Belden Horizon Data Manager.
- Select the appropriate company and project. The Dashboard pane appears for the project.
- Scroll down to see the alert.
The email address that was configured for the alert will also receive the respective alert email.
