ZeroTouch

4 min

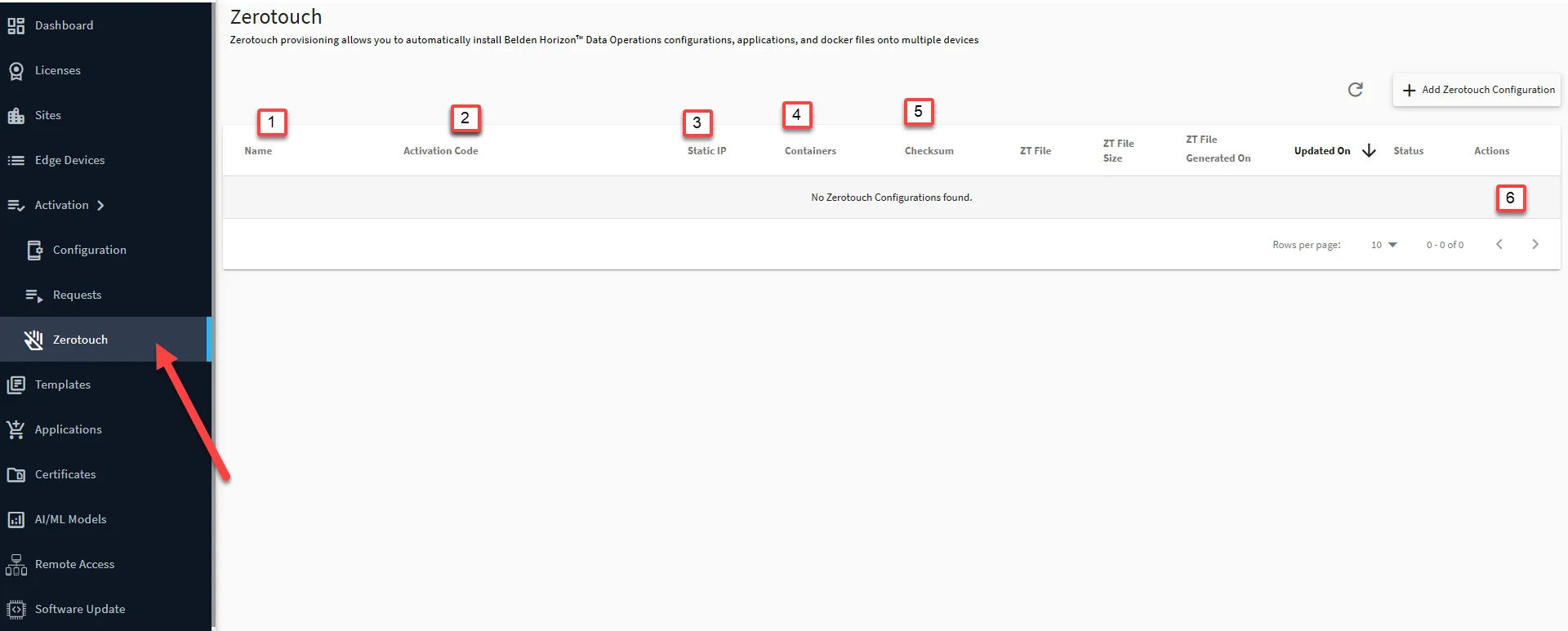

zerotouch provisioning allows you to automatically install edge instance configurations, applications, and docker files onto multiple devices the zerotouch tab allows you to set up a static ip with subnet mask, gateway, and dns settings add docker containers to the zerotouch tar display an md5 checksum to verify the file create and download zerotouch tar files log actions like file creation and timestamps important notes large files may take longer to generate fat32 usb drives don’t support files over 4gb —use ntfs or ext4 instead once created, zerotouch configurations cannot be edited zerotouch files are not included in backups but remain available after system updates access zerotouch ui to access the zerotouch ui log in to belden horizon data manager select a company the projects pane appears from the navigation panel, select activation > zerotouch zerotouch tab appears refer to the following actions you can take on the belden horizon data manager user ui's zerotouch tab action details \[1] name custom label for the configuration \[2] activation code the activation code (if used) \[3] static ip shows if a static ip is set (yes/no) toggle to enable/disable fields for static ip address , subnet mask , gateway , and dns \[4] containers number of docker containers included toggle to enable/disable table to list containers with name and run command fields \[5] checksum md5 checksum of the generated tar file (if available) \[6] actions buttons to edit , generate , or remove a configuration next steps docid\ a1bmhgv9gmlqayy3krnbm
