Multi-Select Mode

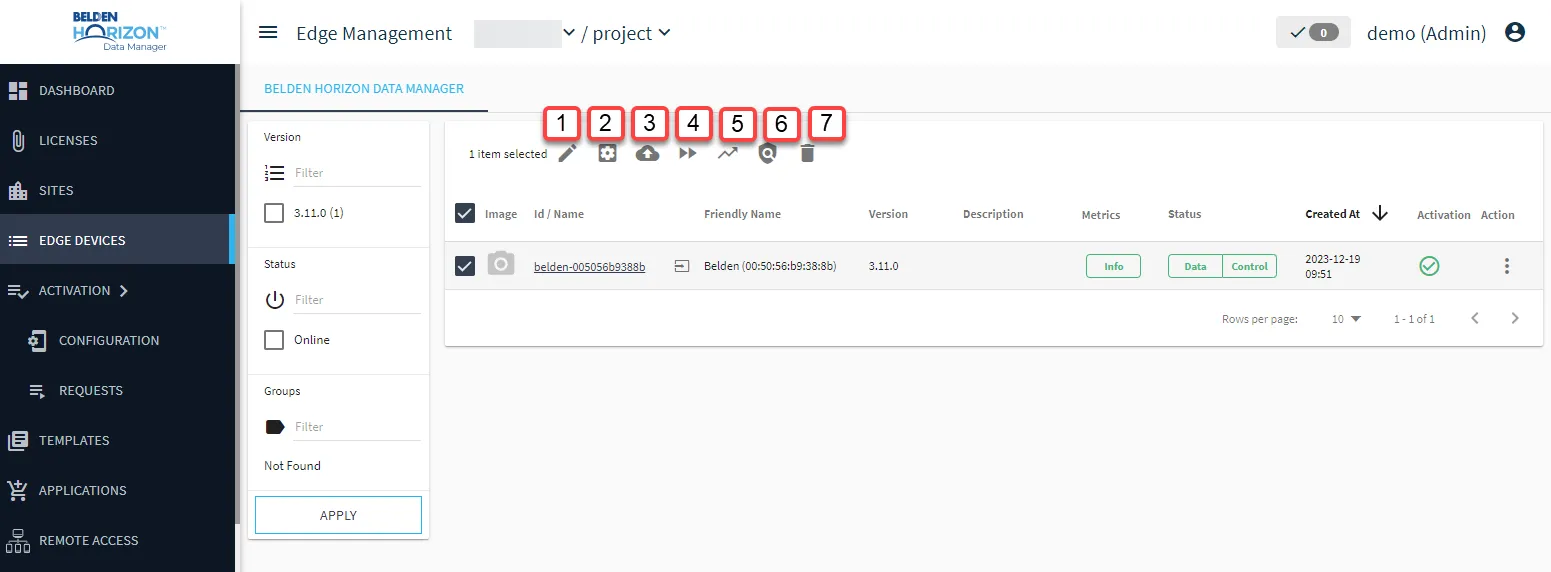

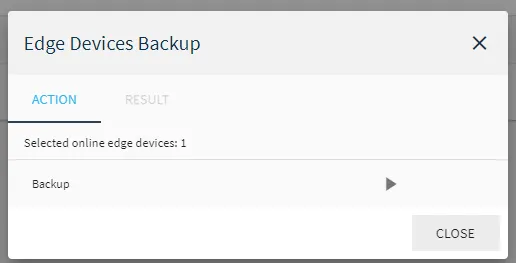

the edge devices module includes a groups and edge devices section you can create and apply a group to selected edge devices from the groups section multi select mode is used when you want to perform the same actions to multiple devices from the edge devices pane you can modify the properties, or start, stop and restart services for the selected devices to enable multi select mode log in to belden horizon data manager select a company the projects pane appears do one of the following click a project from the project pane click the actions icon for a project, and then select view the dashboard pane appears for the project from the navigation panel, select edge devices the edge devices pane appears click the multi select icon selection boxes appear next to each edge device select one or more edge devices in the edge devices list you can perform the following available actions for the selected edge devices \[1] edit selected edge device \[2] manage edge device(s) services \[3] backup edge device(s) (available for belden horizon data manager version 2 16 0 and later) \[4] manage events forwarding \[5] manage metrics pulling \[6] change password policy \[7] delete edge devices(s) edit selected edge devices you can modify the properties for multiple selected edge devices using multi select click select image , navigate to the image file and click open the image file appears in the device image field (optional) in the device description field, enter a description for the selected edge devices (optional) in the add device groups field, enter a group name for the selected edge device click update the image for the selected devices updates to reflect your selection manage edge device(s) services you can modify the properties, or start, stop and restart services for the selected edge devices click the start service icon next to a service the service starts for the selected edge devices click the restart service icon next to a service the service for the selected edge devices restarts click the stop service icon next to a service the services for the selected edge devices stops backup edge device(s) note available for belden horizon data manager version 2 16 0 and later you can back up multiple edge devices simultaneously once backed up, you can navigate to edge devices, click the device name you backed up, and navigate to the docid\ axfch6dh6avovjlq5w7rz tab manage events forwarding you can apply or disable events forwarding to multiple edge devices click the start icon next to forwarding to apply events forwarding to the selected edge devices click the stop icon next to forwarding to disable events forwarding for the selected edge devices manage metrics pulling you can apply or disable metrics pulling to multiple edge devices click the start icon next to forwarding to apply metrics pulling to the selected edge devices click the stop icon next to forwarding to disable metrics pulling for the selected edge devices change password policy you can apply a selected password policy to multiple edge devices from the select password policy dialog box, select an option from the selected policy drop down list
