Interfaces

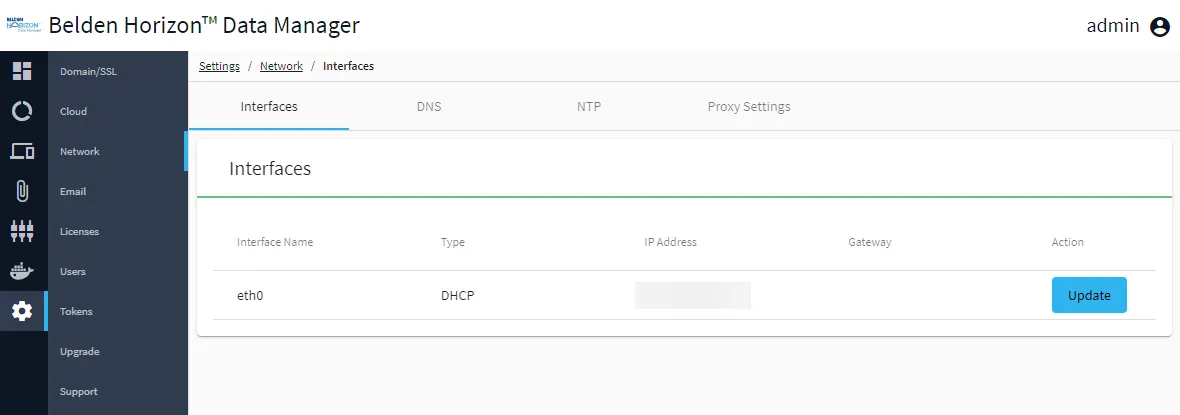

note the interfaces feature is available for belden horizon data manager version 2 8 0 and later you can configure the interface settings and add a static ip address by navigating to settings > network and clicking the interfaces tab this feature enables you to configure belden horizon data manager so that it can be accessible from multiple ip addresses the user interface below is for belden horizon data manager version 2 10 0 and later update network interface adding a new address will enable you to access the belden horizon data manager from the new ip address contact your local network administrator for the addable ip addresses you can also enable/disable dhcp for the network interface as needed note as of belden horizon data manager version 2 10 0, if dhcp is disabled, you must have at least one ip address with a gateway
