Details

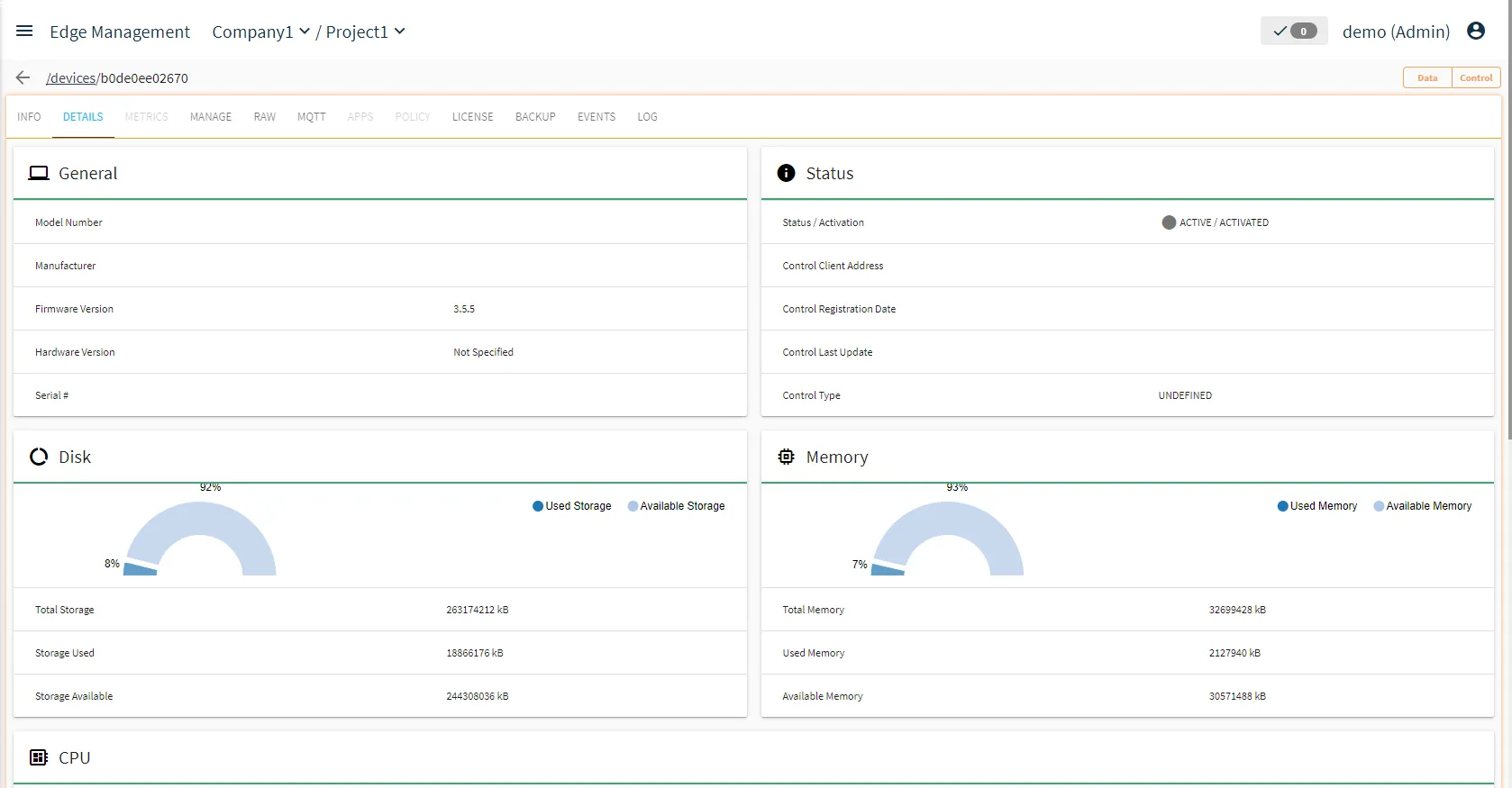

the details tab includes device status, disk, memory, cpu, network interfaces, serial interfaces, modem interfaces, and can interface information for a selected edge device tip if data does not display check the device status from the edge devices pane to see if data is connected see docid\ qdsspuszbm8osxks hgzg check the edge device information in belden horizon data operations see docid\ ktc 8srwsnpokctskf3t edge device information the following sections include information about the edge device note the sections that display for an edge device may differ according to the type of device general l abel description model number the model number for the edge device manufacturer the manufacturer of the edge device firmware version the current firmware version used for the edge device hardware version the hardware version used for the edge device serial # the serial number for the edge device status l abel description status / activation if the edge device online status is active or deactivated control client address the url for the client control registration date the date and time the edge device was registered control last update the last date and time the edge device was updated control type the type of component that controls the edge device disk l abel description used storage the percentage of used storage for the edge device available storage the percentage of available storage for the edge device total storage the total storage for the edge device in kb storage used the storage used for the edge device in kb storage available the available storage for the edge device in kb memory l abel description used memory the percentage of used memory for the edge device available memory the percentage of available memory for the edge device total memory the total memory for the edge device in kb used memory the used memory for the edge device in kb available memory the available memory for the edge device in kb cpu l abel description model the model of cpu(s) used for the edge device cores # the number of cores for the cpu model clock speed the clock speed of the cpu model vendor id the vendor for the cpu model network interfaces l abel description interface type of network interface it can be an ethernet (eth0 or eth1), a wi fi (wlan0), or an lte (wwan0) network interface mac address physical address of the network interface ip address logical address assigned by software to the network interface address family inet means that ipv4 traffic is run through the interface, while inet6 means that ipv6 is run through it type address space of the network there are two types addrtypeprivate the network interface can interact with any other network because the ip address has global scope addrtypelinklocal the ip address is only valid on local network segments ipv6 requires a link local address on every network interface serial interfaces l abel description name the name of the device model the model of the device manufacturer the manufacturer of the device serial # the serial number of the device speed (baudrate) the communication speed of the device, in baudrate modem interfaces l abel description status the network area of the lte modem home, for example, indicates that devices are all in close vicinity to the modem bars the signal strength of the lte modem it ranges from zero to five zero means no signal, while five means a very strong signal network the mobile network from which the modem communicates ipv4 the ipv4 address of the modem ipv6 the ipv6 address of the modem imei international mobile equipment identity a unique number that identifies mobile network devices iccid integrated circuit card identifier the sim card serial number apn access point name serves as a gateway for a mobile network to connect to another network or the public internet can interfaces l abel description interface the name of the device set "open" a check box that configures the selected device set "closed" a check box that configures the selected device set "status reset" a check box that configures the selected device can speed, kbit/s the high speed baud rates from 40 kbit/s to 1 mbit/s, depending on cable length uart speed, baud the maximum rate at which information is transferred
