Deploy an Application to Edge Devices

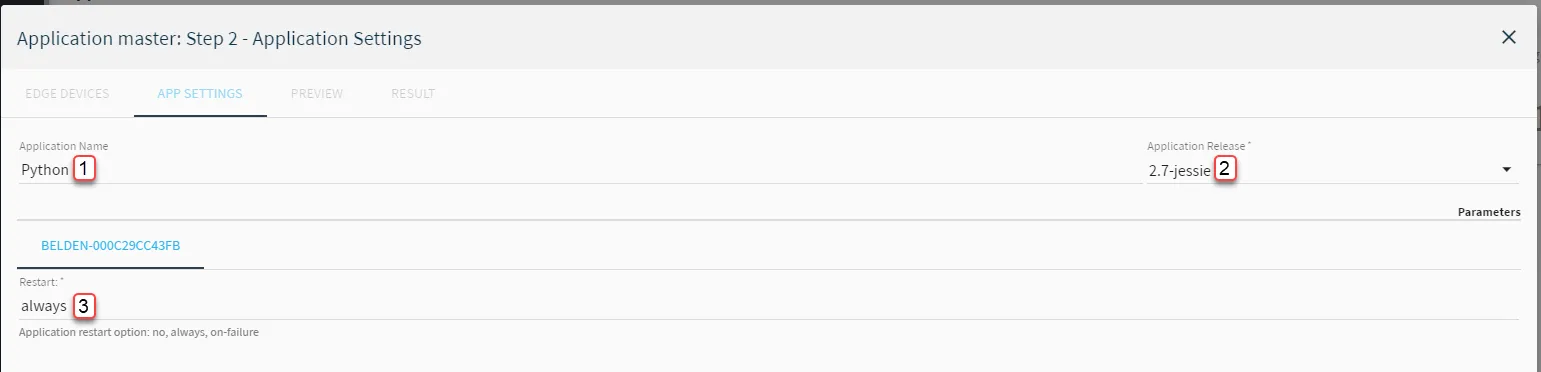

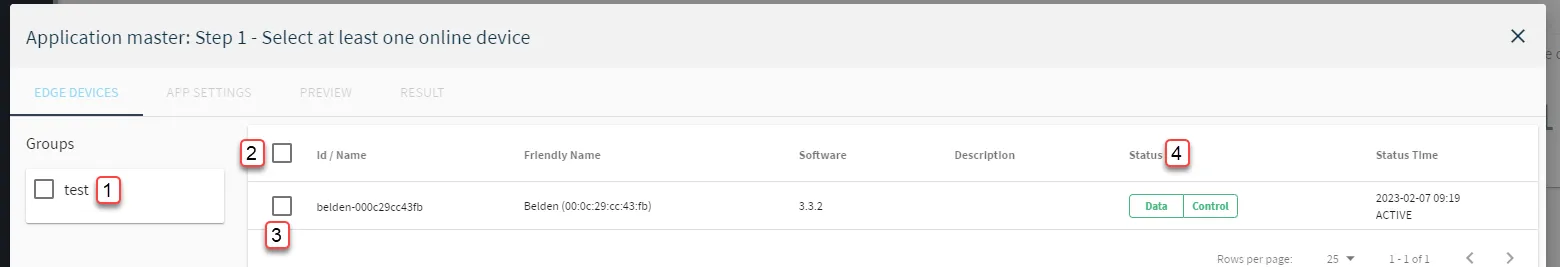

you can deploy an application to one or more edge devices before you begin connect a repository see add new repository in docid\ l8c 9kgktffaztjtb92e1 create a marketplace catalog for your application and then add the application see add catalog and add or import an application in docid\ ya binyxzj3rjz3v1 1pq submit the application release you want to deploy see submit release in docid p201d dyar0ymjc3pwx ensure each of belden horizon data operations devices have enough disk space to receive the docker application release’s associated docker image(s) step 1 select at least one online device \[1] filter by groups \[2] select all displayed edge devices \[3] select edge device \[4] view data | control status to select one or more edge devices (optional) from edge devices tab, select one or more groups select one or more edge devices click next step 2 application settings \[1] change application name \[2] change application release \[3] set application parameters unique set of parameters for each application see docid 0v6alkyrqqujd3r 2wfut for details on how set up the parameters for each application the parameters will be applied to the application’s respective docker image when the belden horizon data operations receives this application and its respective docker image, these parameters will be passed as runtime variables to this application’s respective docker container to configure application settings from apps settings tab, select a submitted release from the application release drop down list (optional) make changes to other parameters, then click next update options depend on the application selected step 3 preview \[1] review device(s) names \[2] review application name and release \[3] review parameter settings to preview application deployment configurations from the preview tab, review your selections, and then click launch step 4 result \[1] view edge device details docid\ gqbzcp97pbhbzynscomvg \[2] view message to finalize application deployment from the result tab, wait for values under the message column to confirm successful deployment(s) click app details the selected edge devices appear in the edge device list on the selected application details pane the initial app status for the deployed devices should be pullingimagestarted wait for the docker image pull operation to complete or fail a new app status will be shown step 5 verify deployed application is running to verify the deployed application is running from the application details pane, click the edge device id link the selected application is displayed as running on the apps tab in edge device details see docid\ gqbzcp97pbhbzynscomvg if the app status display as a launcherror it indicates that the docker image pull operation failed ensure that the application’s respective docker image registry location is a valid one (see docid\ mebpl6tcgzj9ns2cmk5cq ) or your belden horizon data operations instances can connect and access the registry location step 6 verify the application on the edge device for the edge device, check its docid 4nq7aetrjfeei 00eend7 section to verify the respective application container is running for the application
