Admin Console Licenses

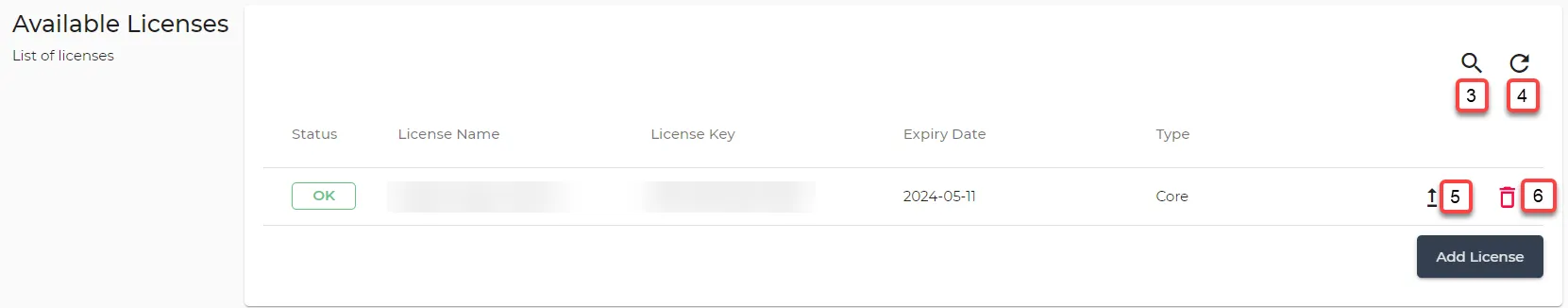

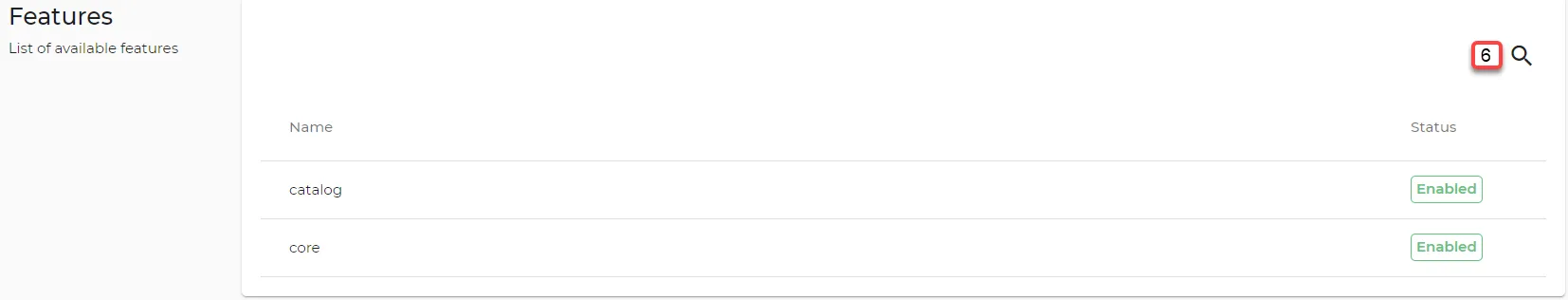

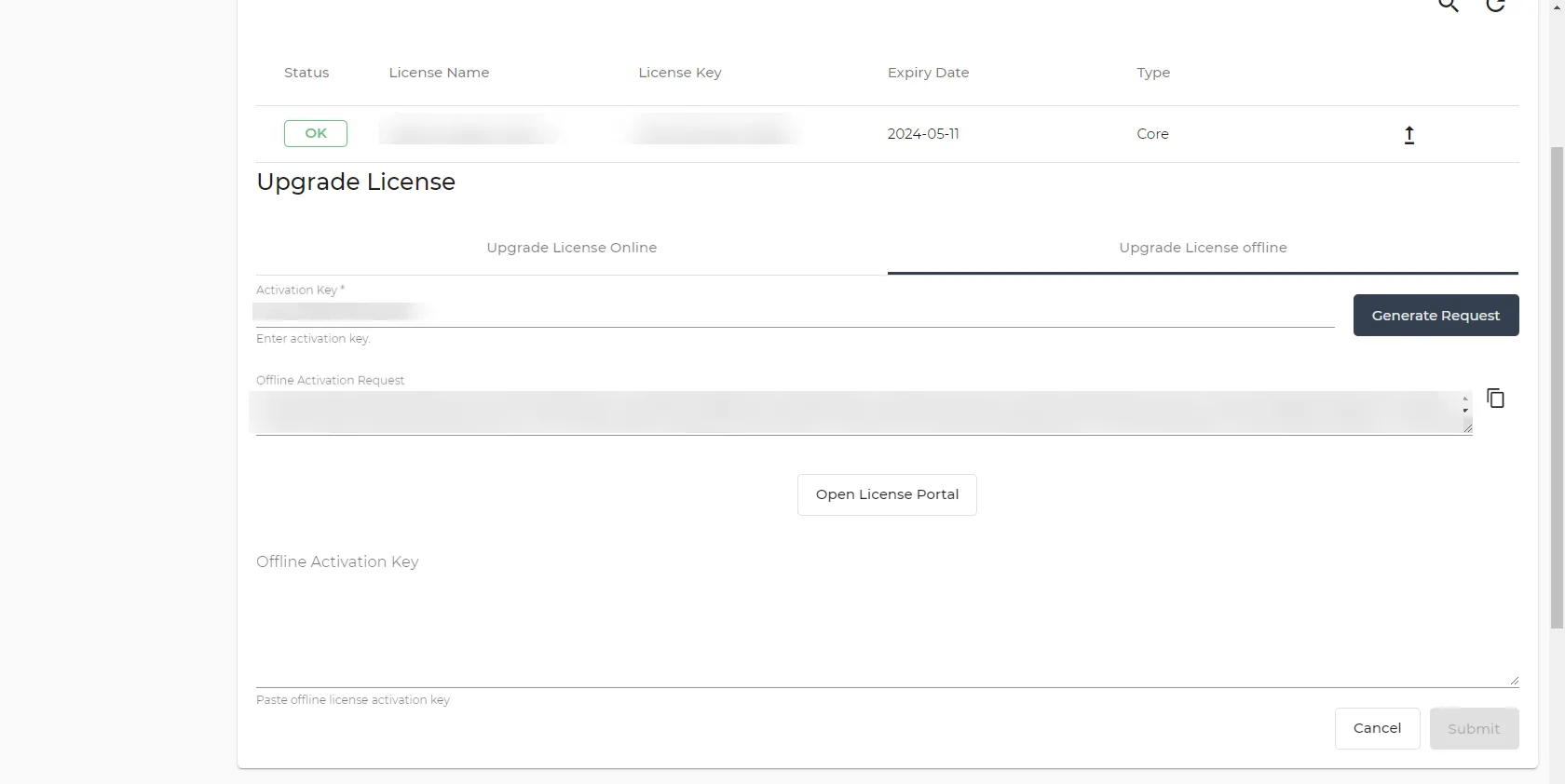

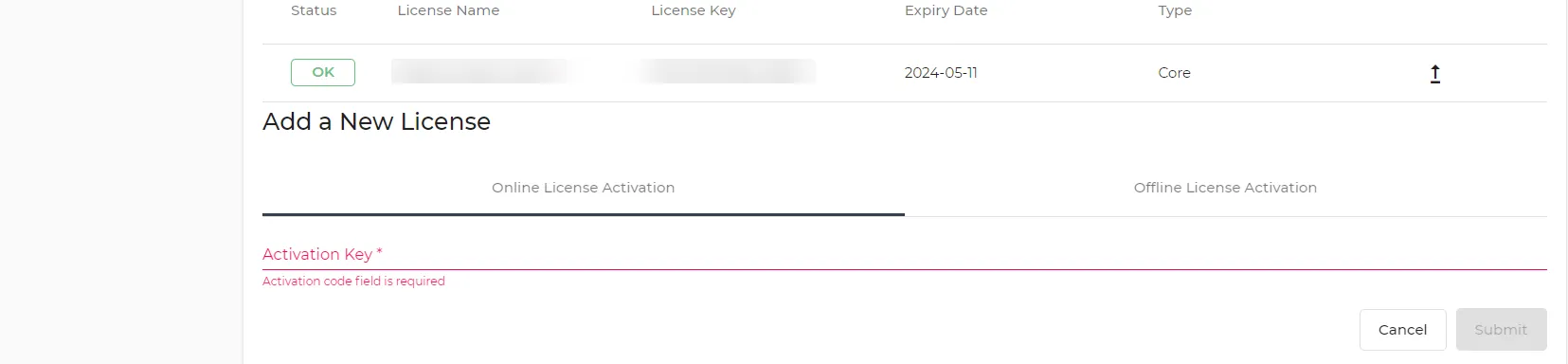

the licenses module provides information for the available licenses and features related to your plan you have the following options for adding a license to add/upgrade a node locked license (online or offline), continue with the sections below to add a site license (offline only), see docid\ fk7wm14xfcbinps7zbeuf contact your belden representative to request a license key the license pane has three sections license settings switch between using a node locked or a site license for belden horizon data manager available licenses view the applied licenses for belden horizon data manager online license activation and upgrade license online activate (add) or upgrade a license if the belden horizon data manager is connected to the internet offline license activation and upgrade license offline activate (add) or upgrade a license if the belden horizon data manager is not connected to the internet features view the enabled features associated with your applied licenses warning before activating the license, ensure all hardware / vm configuration steps that can modify the media access control (mac) address (add/replace a network interface controller (nic) card) are finalized the license host id depends on the mac address for the device the mac address identifies the devices on a network changing the mac address will invalidate the license license settings a belden horizon data manager (bhdm) license can be either node locked or site a node locked license is one that's locked onto the bhdm to enable the instance to be used at anytime without a connection to the license server a site license requires a reachable connection to a licensing server \[1] select license setting \[2] save license setting available licenses viewing, adding, and upgrading node locked licenses notes as of belden horizon data manager version 2 10 1, the available licenses section is only visible when selecting a node locked license it is unavailable when a site license is selected as of belden horizon data manager version 2 12 0 the add license and upgrade core license features are part of the available licenses section as of belden horizon data manager version 2 14 0, you have the option of deleting an existing license in the available licenses section \[3] show filter / hide filter search by license \[4] refresh available licenses \[5] upgrade core license \[6] delete license only available for belden horizon data manager version 2 14 0 and later you can add (activate) a new or upgrade an existing belden horizon data manager node locked license contact your belden representative to request a license key you can activate your node locked license either online or offline you can add a core or an add on node locked license while multiple add on node locked licenses can be added as needed, only one core license can exist important any license added (activated) /upgraded for a belden horizon data manager is bound to its mac address in case the belden horizon data manager has to be reinstalled, assign the same mac address again to be able to reuse all licenses activate or upgrade a node locked license online online activation allows you to add (activate) /upgrade a belden horizon data manager node locked license directly with the belden licensing system the user interface below is identical to upgrade license online to add(activate)/upgrade a license online ensure the belden horizon data manager establishes a connection with the internet in the activation key field, enter the belden horizon data manager node locked license key you received from the belden the key has the following structure <4 digits> <4 digits> <4 digits> <4 digits> click submit after a successful add/upgrade, the license will be loaded and will be displayed in the available licenses and features section respectively activate or upgrade a node locked license offline offline activation allows you to add(activate)/upgrade a belden horizon data manager node locked license if enterprise cybersecurity rules do not allow for direct access with the belden licensing system through the internet the user interface below is identical to upgrade license offline before you begin make sure you have access to a web browser that is connected to the internet to complete this activation if your web browser is on a separate computer, use a text file to copy the host id, activation url and offline response step 1 obtain offline activation request from the offline license activation / upgrade license offline section enter the node locked license key in the activation key field click generate request the activation request appears in the offline activation request field next to the offline activation request field, click the copy activation request icon the activation request is copied to your clipboard click open license portal the licensing portal opens in a new tab step 2 obtain activation result from licensing portal from the licensing portal tab paste the activation request in the activation request field, and then click make license (you may need to verify i'm not a robot ) the encoded license appears in the activation result field next to the activation result field, click the copy content to clipboard icon to copy the encoded license return to the offline license activation / upgrade license offline section step 3 submit offline activation key from the offline license activation / upgrade license offline section again paste the encoded license in the offline activation key field click submit the license is added features you can filter and view features that are available for your plan from the features section in the licenses module this section allows you to monitor which features are unlocked and available by the licenses you can filter for a specific feature or group of features \[6] show filter / hide filter search by features
