Add/View a Remote Network
2 min

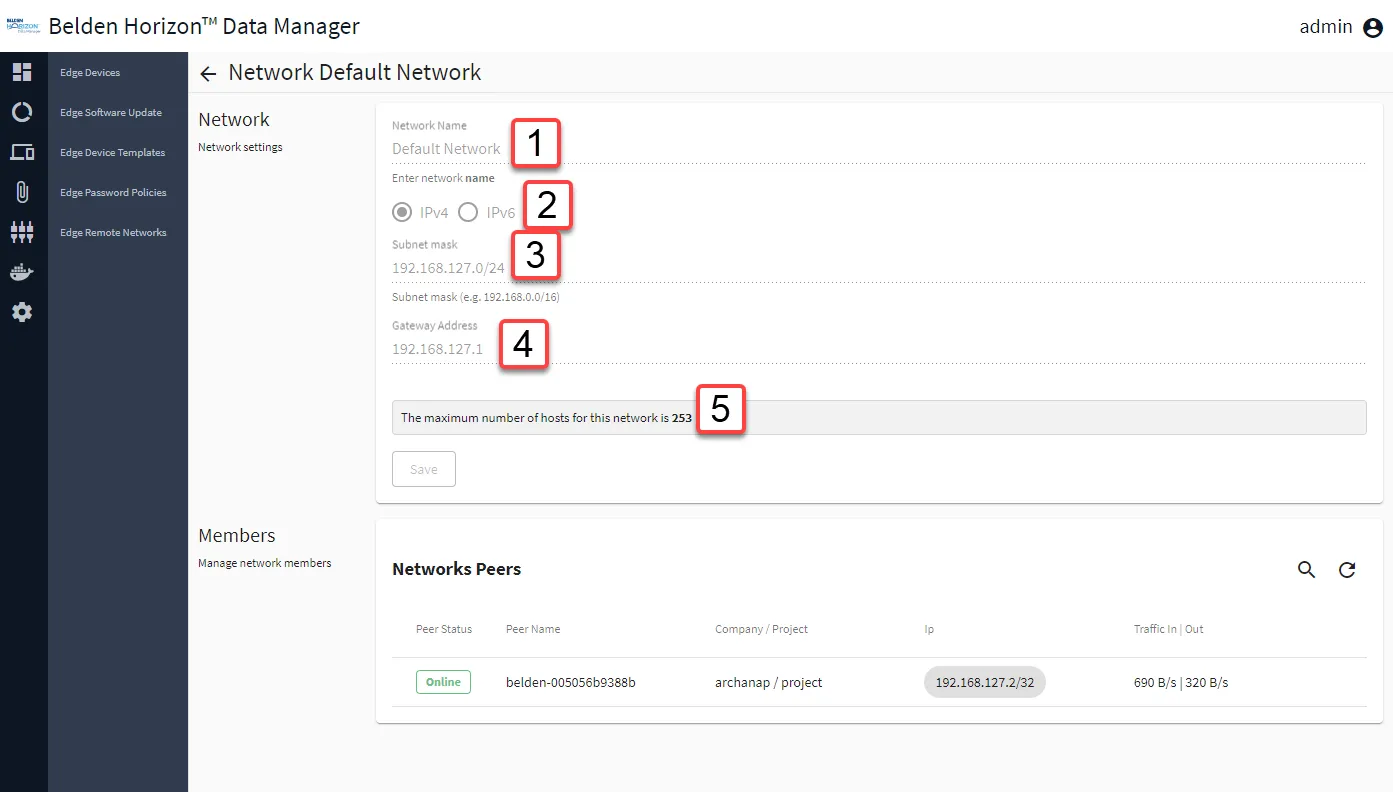

you can customize a remote network and configure its network peers to add a new network, click the add icon from docid\ rnasirtqbjjguhkh qpsy to view/update a network, click the network name from docid\ rnasirtqbjjguhkh qpsy \[1] enter the network name \[2] select ipv4 or ipv6 \[3] enter the subnet mask note an ipv4 address in the format 0 xxx xxx xxx/8 is not allowed due to rfc standards ipv4 example xxx xxx 0 0/24 ipv6 example fd97 531a\ ce26\ ab11 /64 \[4] enter the gateway address \[5] review the capacity for activated devices on the network (available for belden horizon data manager version 2 16 0 and later)
