Discover Devices on the Network

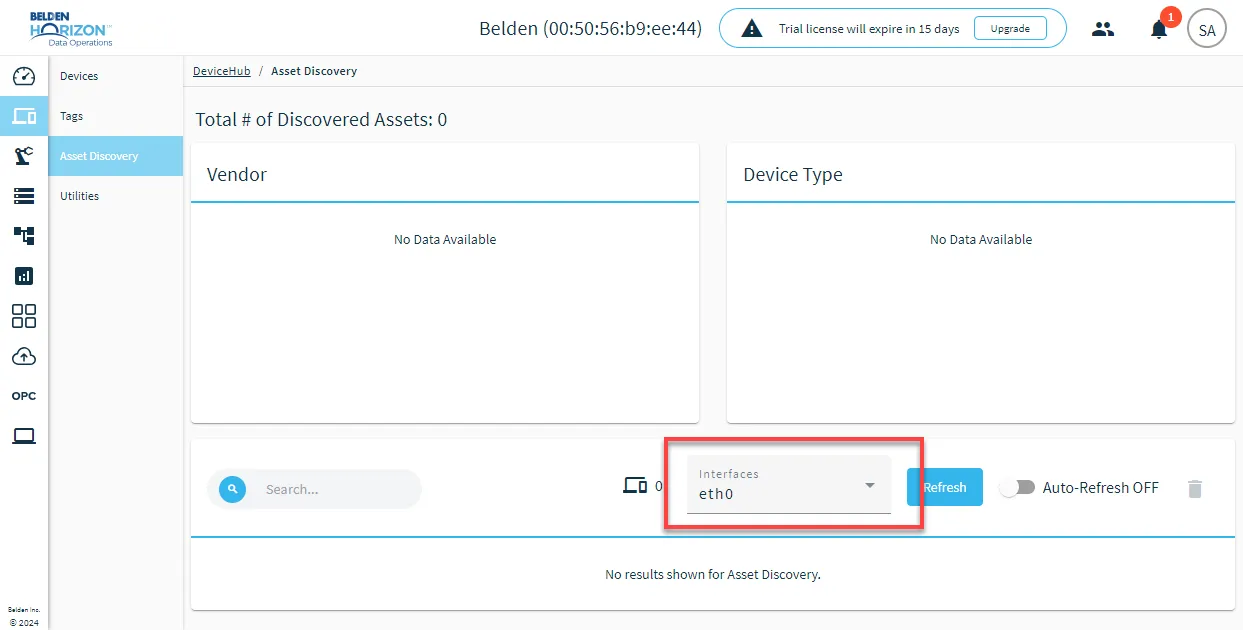

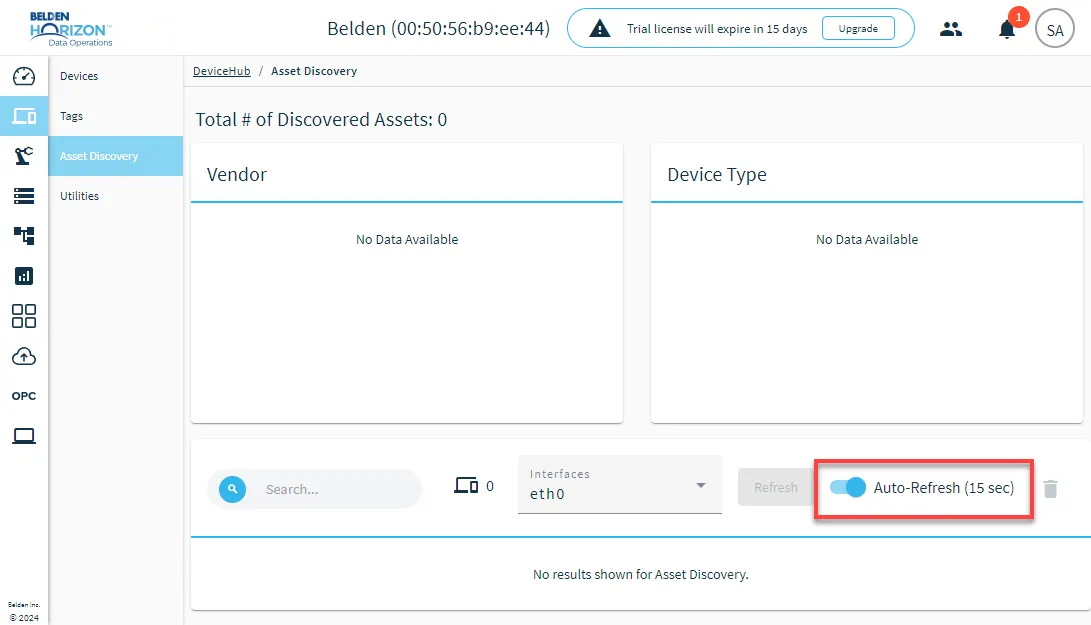

you can discover devices on the network by navigating to devicehub > asset discovery enable/disable device discovery important to discover devices on cip, your firewall must allow incoming udp packets on 58107 once you enable discovery for cip, a firewall rule in belden horizon data operations will automatically be created to allow udp messages on port 58107 when device discovery for cip is disabled, the firewall rule will be automatically deleted you can view this rule on the firewall page, but you can't edit or delete it see docid\ zvyrnvndt8tupqf48bn8i to learn more you can enable and disable discovery of devices that are connected to your network use asset discovery to discover which nodes are for edge devices to enable asset discovery, you will first need to select which interfaces to search on open the menu for interfaces to select them then, toggle the auto refresh switch to on to start looking for devices once devices are discovered, you can review the following overview the overview section displays the following information the total number of devices discovered the total number of devices per vendor the total number of devices per device type device table the device table displays the following information for specific devices ip address device name protocols time last seen discover devices on the network depending on the enterprise, belden horizon data operations may become lost among the thousands of devices in the private network you can use belden horizon data operations with vga/hdmi to discover devices belden horizon data operations with vga/hdmi if the system is running normal belden horizon data operations, it can be discovered using tui (terminal user interface) access connect a monitor to the belden horizon data operations ipc and the terminal shows the ip address of the device see docid\ tdhqtwqbqzobeduatvehz
