Access the Belden Horizon Data Operations Web UI

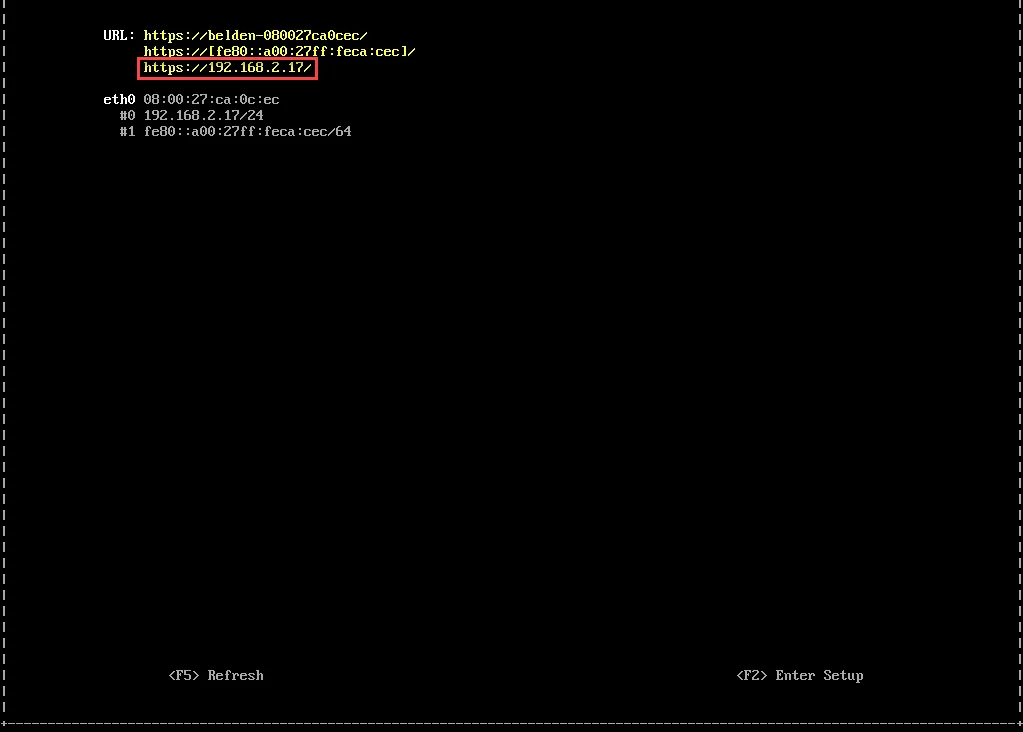

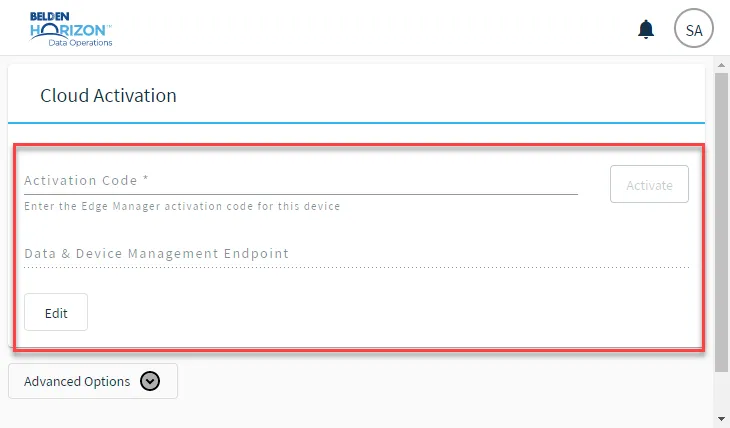

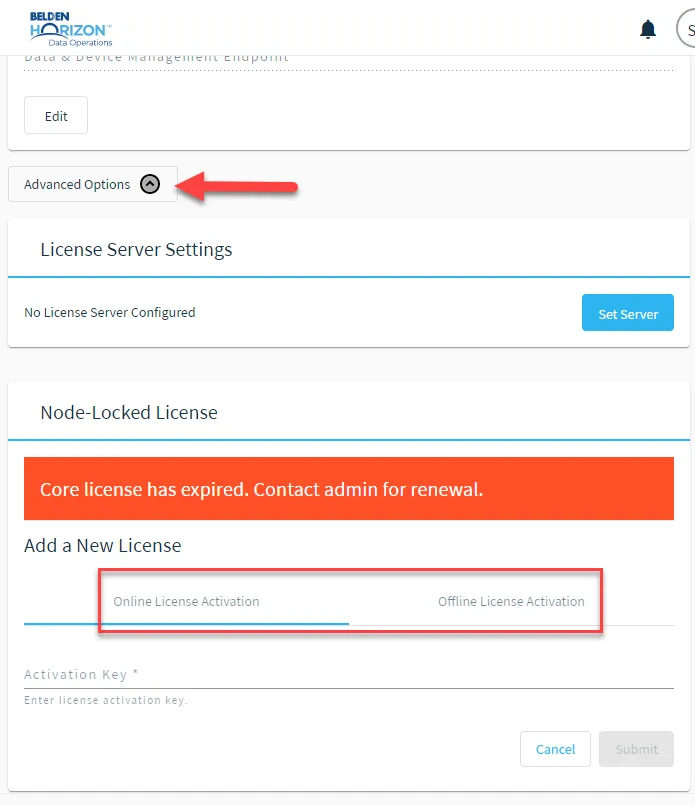

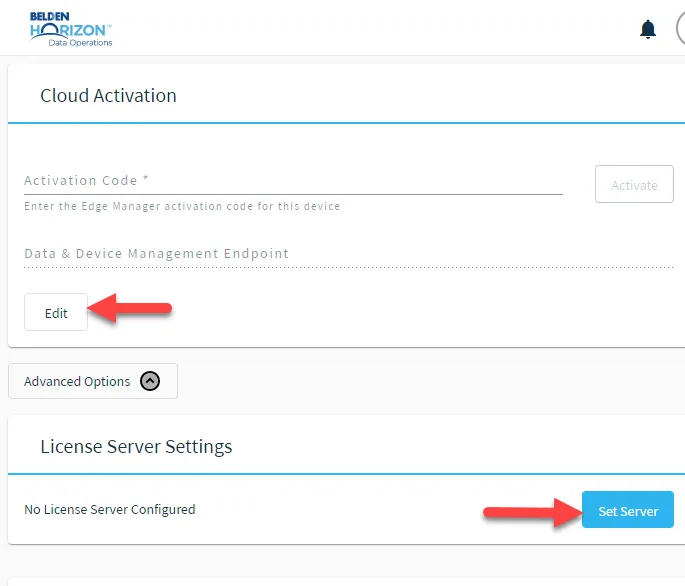

after successfully installing belden horizon data operations, you can access the web ui from a browser such as chrome or firefox important if you can't access features when logging in, see the activate a license section below you may see the following error message when working with docid\ thwaae9fa23y3jt 1zovp "http failure response for /analytics/v2/version 0 unknown error" if you see this message, disable any ad blockers your browser may have access from a browser after you have installed belden horizon data operations you can connect to the belden horizon data operations device from a browser using the network ip address for the device the address can be found on the terminal display of the gateway or of the vm terminal notes the system is accessible from a browser by host name if your computer supports mdns this is a convenient feature if your device uses dhcp for address make sure that your network is not behind a company firewall or proxy that is blocking the connection log in to the belden horizon data operations web ui the first time refer to the following to log in to belden horizon data operations the first time after installing it to your device make sure you connect your personal computing device (laptop, tablet, desktop) to the network in which the device operates the belden horizon data operations software should be installed on the device that is connected to the same network as your personal computing device so that you can establish a network connection to access the web ui, you must use google chrome, mozilla firefox, or apple safari the browser must be able to establish a network connection to the device gather the belden horizon data operations ip address from the terminal window as shown above the ip used to access the device is usually the wan ip or eth0 ip if the it and ot networks are segregated, the network used to establish the connection to the plc system, robotic system, or cnc system is the eth1 network and cannot be accessed from the browser if no segregation exists, only eth0 is used by both the ot and it connection there is no open external api point belden horizon data operations uses a self signed certificate, so the browser will most likely block the login for security reasons choose the advanced option to bypass the error message see docid\ bgyr9kzveomd8ypplmzl0 to learn more to log in to belden horizon data operations the first time enter belden horizon data operations ip address into the browser address bar enter the default credentials the default username is admin and password is password click log in a software license agreement displays review the agreement and click accept follow the prompts to change your password belden horizon data operations opens in your browser the dashboard page appears by default you are now logged into belden horizon data operations password requirements password requirements are applied when you reset your password or create user accounts within belden horizon data operations at the first login, you will be prompted to change the default password when creating a password, the password must meet the password policy management requirements see docid\ hc8tymukst8gdfmvwmyvu for more information notes do not forget your password for security reasons, there is no password recovery if you lose the administrator password, you must reinstall belden horizon data operations in some cases, you may need to use the docid\ tdhqtwqbqzobeduatvehz as you may have no direct network access to the device in this case, you can connect locally to the device using a keyboard, mouse, and monitor this will allow you to perform the required network setup to make the device accessible through the web ui activate a license you will need to activate a license to access belden horizon data operations features if your trial license or production license has expired you are running belden horizon data operations through docker note if you can access belden horizon data operations features and would still like to activate a license, docid 11v8z3ztyl0oaewiizkqe and docid\ q5vgipd ibs vsshkljhl you have the following options for activating a license option 1 activate belden horizon data operations with belden horizon data manager to activate belden horizon data operations with belden horizon data manager, belden horizon data manager must have a site license on its own license server see docid\ bbgh94p0zhjuz0juao6by to learn more option 2 activate belden horizon data operations with license server you can activate a belden horizon data operations license by setting a license server in belden horizon data operations under advanced options see docid 0swqeyfvdqwh12idtsirb to learn more option 3 activate node locked license you can activate a node locked license for the belden horizon data operations instance under advanced options see docid 11v8z3ztyl0oaewiizkqe and docid\ q5vgipd ibs vsshkljhl to learn more
