Create and Import Models

23 min

You can create Digital Twins models by navigating to Digital Twins > Models.

See Use Digital Twins to Contextualize Data to review how to leverage Digital Twins.

Step 1: Create Model

You have two options for creating the model. You can create a new model or import a model as a JSON file.

Create a New Model

To create a new model:

Navigate to Digital Twins. The Models pane appears.
From the Models pane, click the Create a model tile.
The Create a Model dialog box appears
The Create a Model tile
Click the Type drop-down list and select Select model type.
Enter the name of the model in the Name field.
(Optional) Enter a short description of the model in the Description field.
Click Add. A new model tile appears in the Models pane.

Import an Existing Model

You can import a model as a JSON file.

To import an existing model, click the Import Model icon, select the <model name>.json file, and click Open.

Import Model icon

Model Versions

After creating the model, it is tagged as version 1, and any changes to the model update the model version.

Model version number

Implement Model Updates to Instances

If there are changes to the model that need to be implemented in associated instances, click Upgrade Instances.

Upgrade Instances button

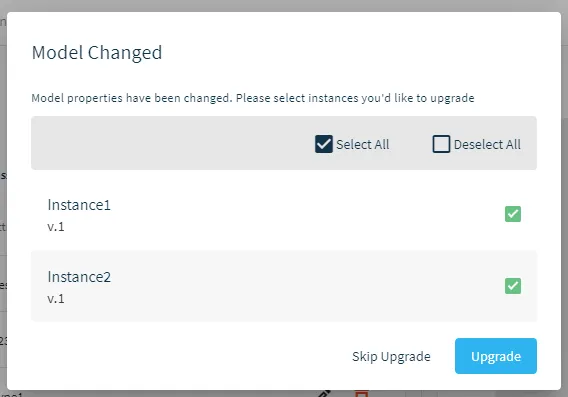

Then, select the instances to upgrade and click Upgrade.

Model Changed dialog

Step 2: Configure Model

After creating the model, you can configure it appropriately for instances.

Note: You have the option to update models with instances and select which instances to update as well. If an instance is updated based on changes made to the model, then it will be automatically disabled. You will need to manually enable the instance after updating it.

Click the Model tile (grid view) or Model name (table view) to view the model details.

Model Image

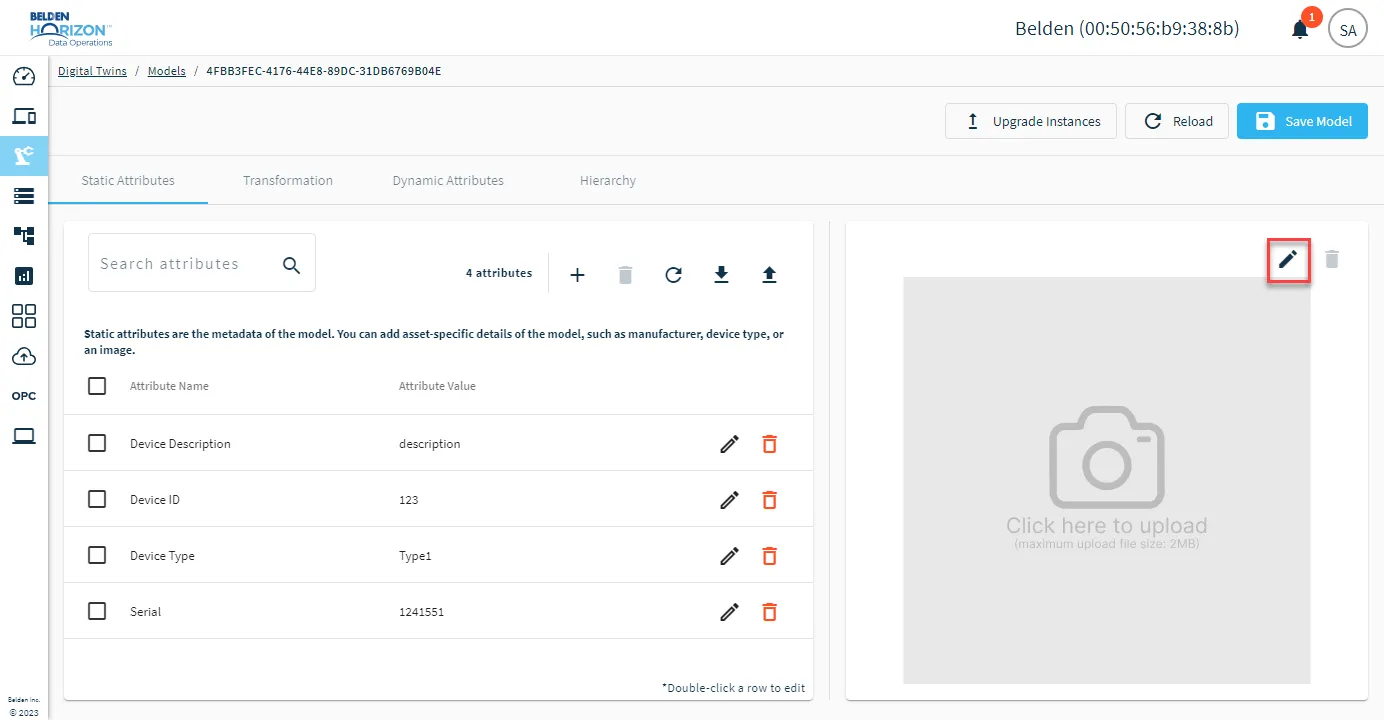

Click the Upload image icon to select an image for the model. The image will display for the model tile on the Models pane.

Upload image icon

Static Attributes

Manage the metadata for the model from the Static Attributes tab.

Manually Add Static Attributes

To add static attributes:

Click the Model tile (grid view) or Model name (table view) to open the model details.
From the Static Attributes tab, click the Add item icon.
Add static attribute icon

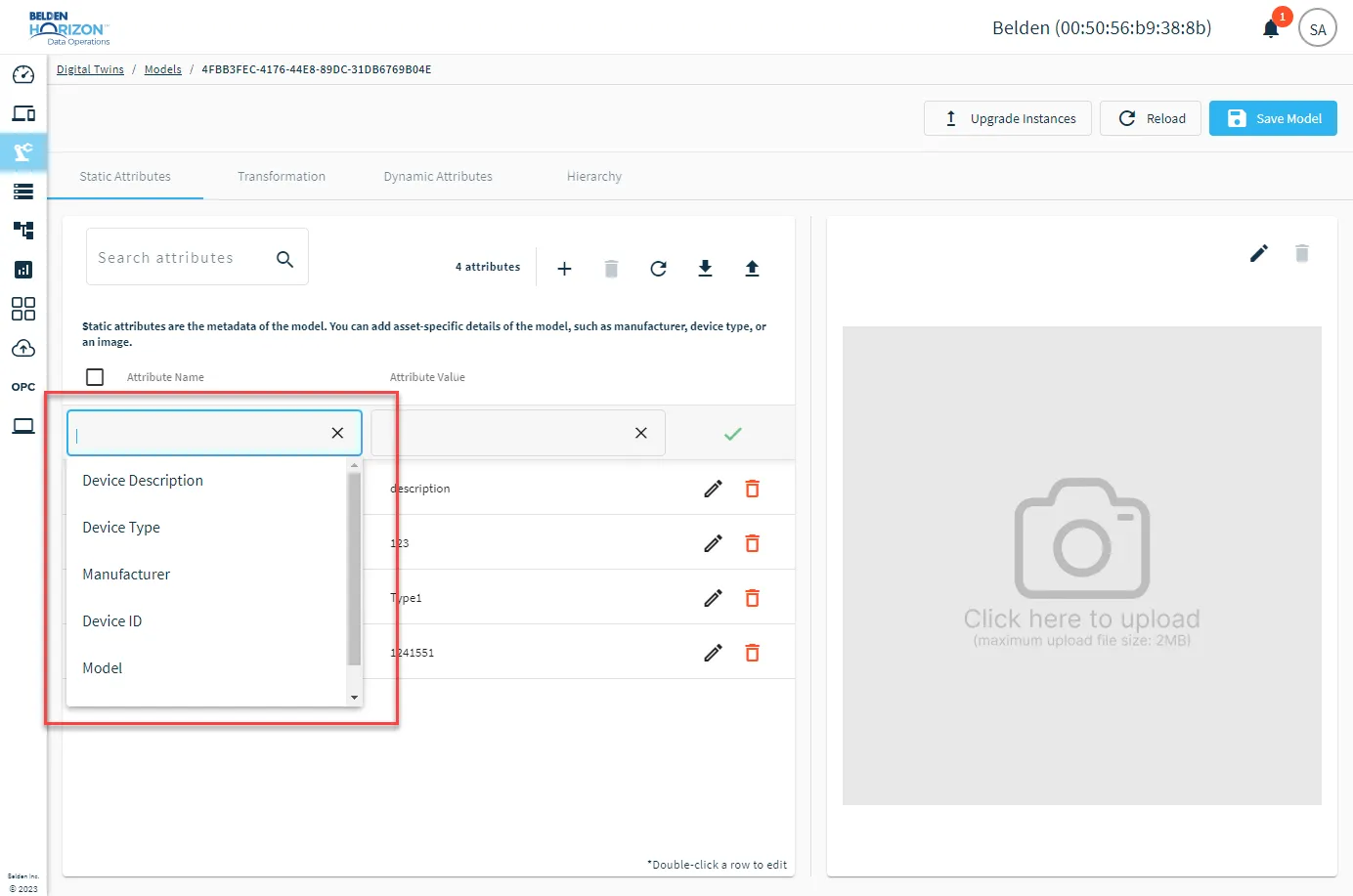

In the Attribute Name field, either select an item from the drop-down list or enter a custom attribute name.
Static Attribute drop-down list
In the Attribute Value field, enter a value for the model.

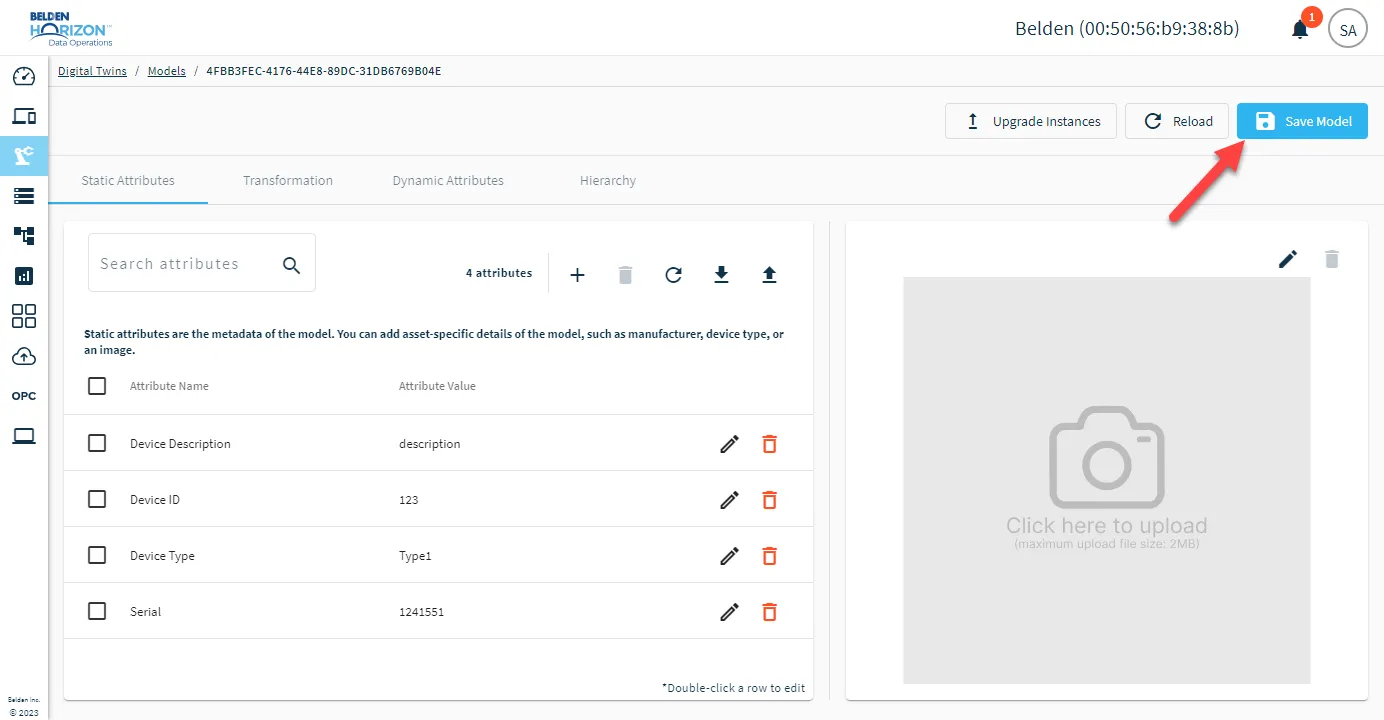

When done adding attributes, click Save Model.

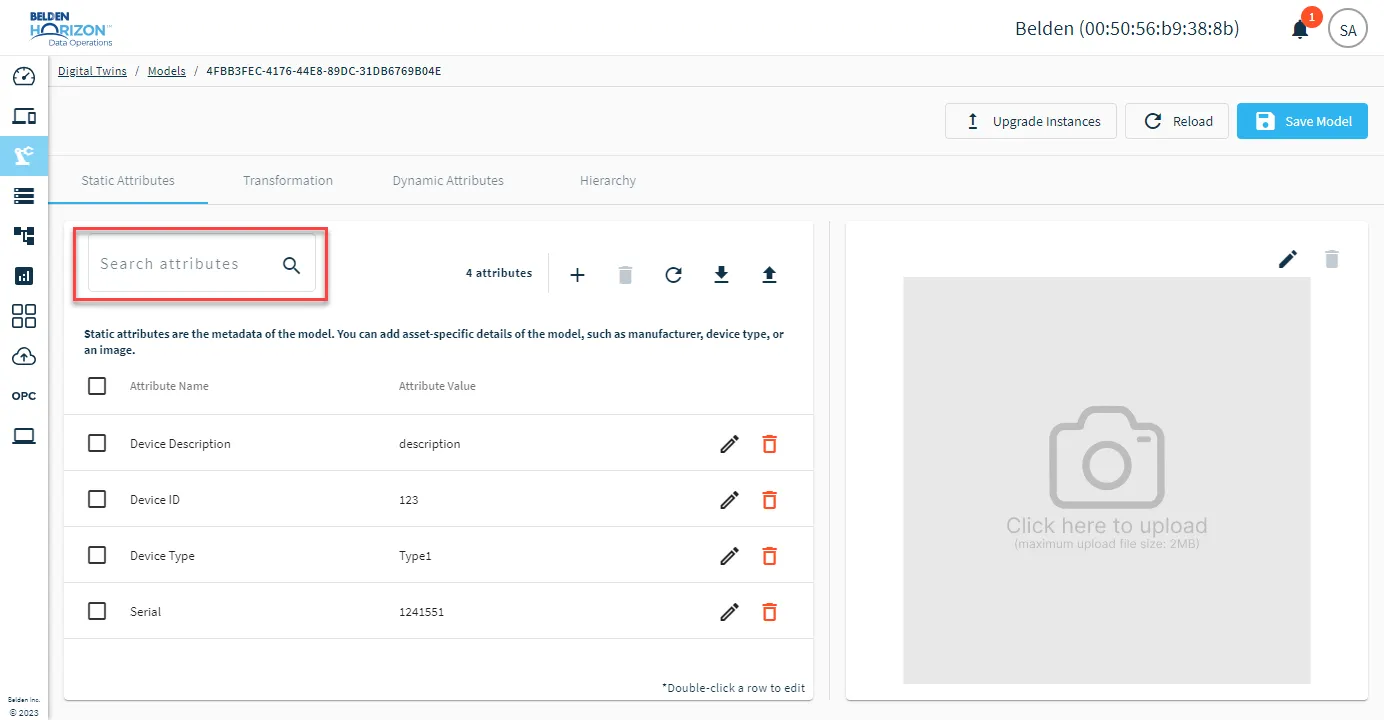

If you need to filter existing attributes, you can use the search field.

Import Static Attributes

To import static attributes, create a CSV file with the following headers:

ModelName
InstanceName
Key
Value

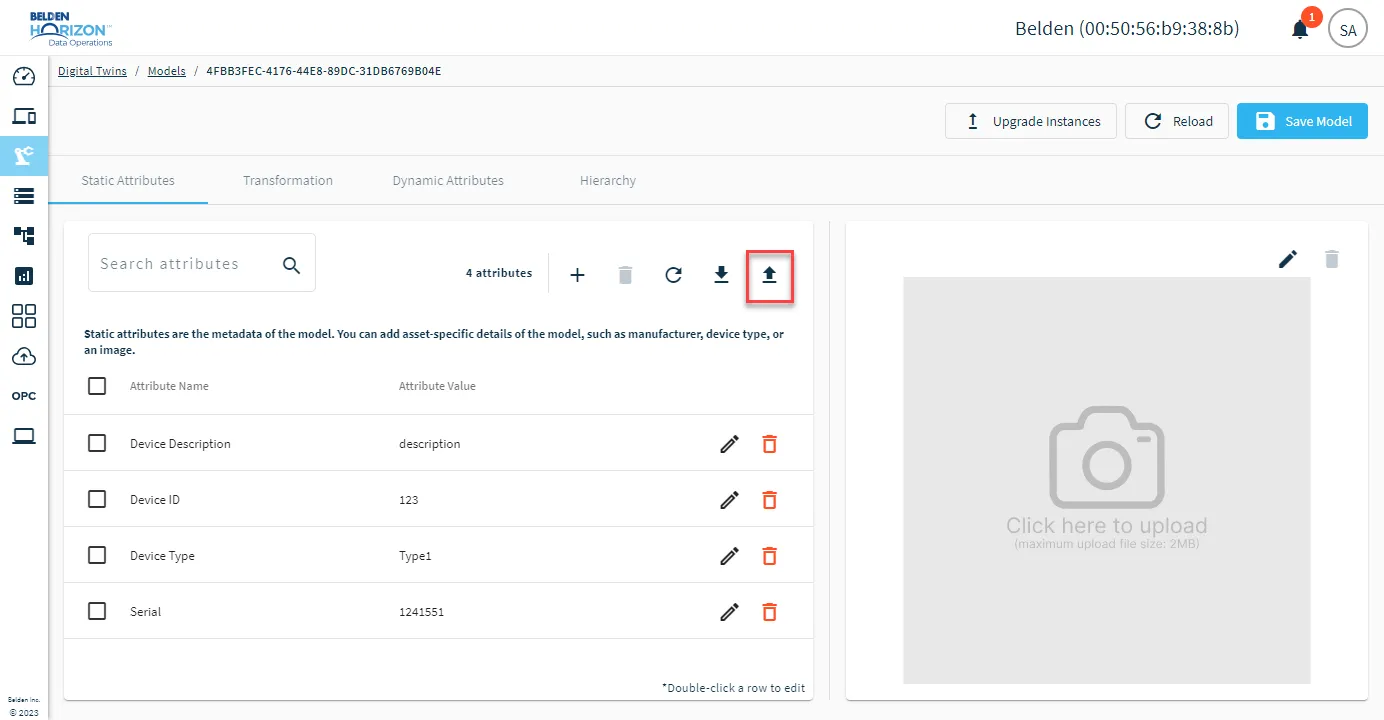

After creating the file, click the model tile, navigate to Static Attributes, and click the Import Attributes icon.

Import Attributes icon

Export Static Attributes

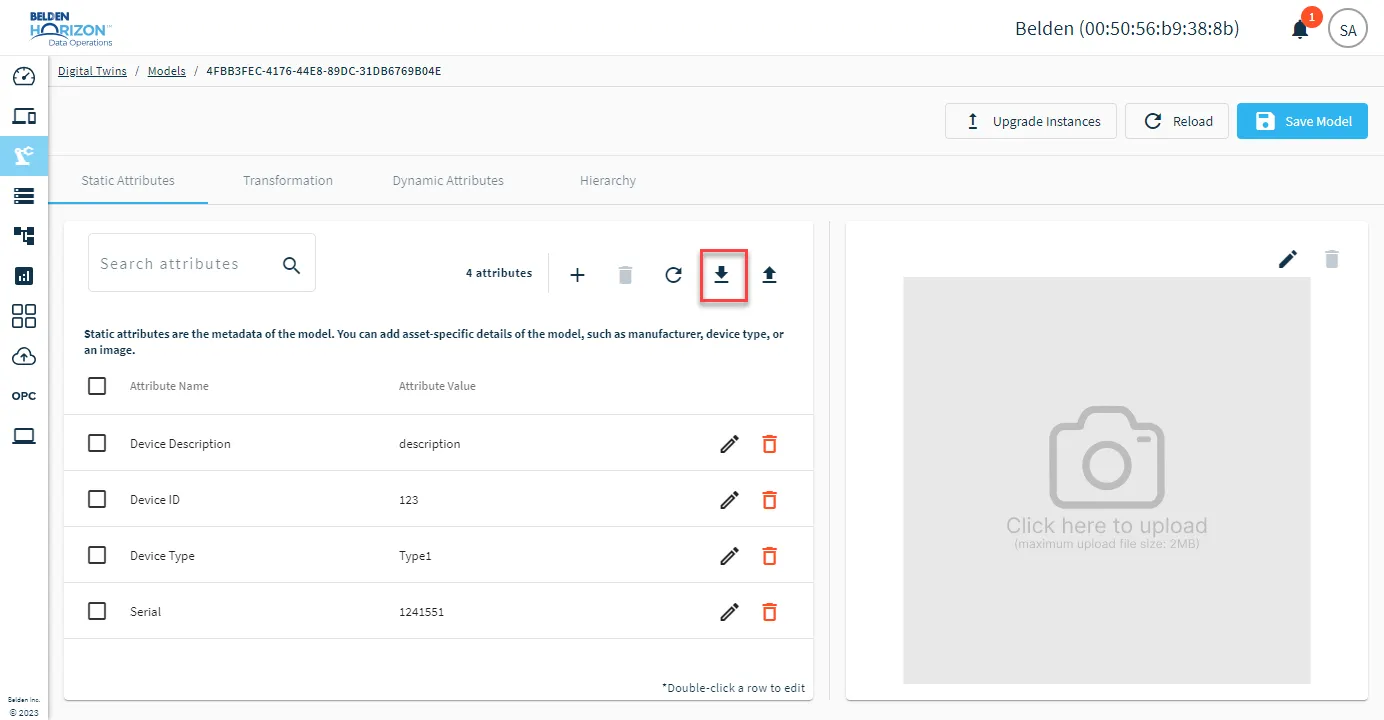

To export a CSV file of existing static attributes, click the Export Attributes icon.

Export Attributes icon

Transformations

Use the Transformation tab to transform the data collected in Instances by converting raw JSON data to a desired format by defining the JSON-based schema.

You can define schema IDs, which can be used to manipulate the payload and define a structure for the payload as the model inherits data.

See Use Digital Twins to Contextualize Data to review how to format transformations.

Note: If you update a transformation and remove all elements from the schema, the entire NATS message will be included in any dynamic attribute that have the transformation selected for the Schema ID.

Arrays

You can configure arrays in transformations. For example:

{
  "key": [
    "$timestamp",
    "$value",
    "$metadata",
    {
      "key2": "$timestamp",
      "key3": "$value",
      "key4": "$metadata"
    }
  ],
  "key5 new": "$timestamp"
}

Configure Transformations

To add a transformation schema:

Click the Model tile (grid view) or Model name (table view) to open the model details.
Click the Transformation tab.
Click the Add a Schema icon. The Add dialog box appears.
Add a schema icon
Enter a name for the schema.
In the code window, copy and paste the JSON-based schema.
Click Add.
When done adding attributes, click Save Model.

Save model button

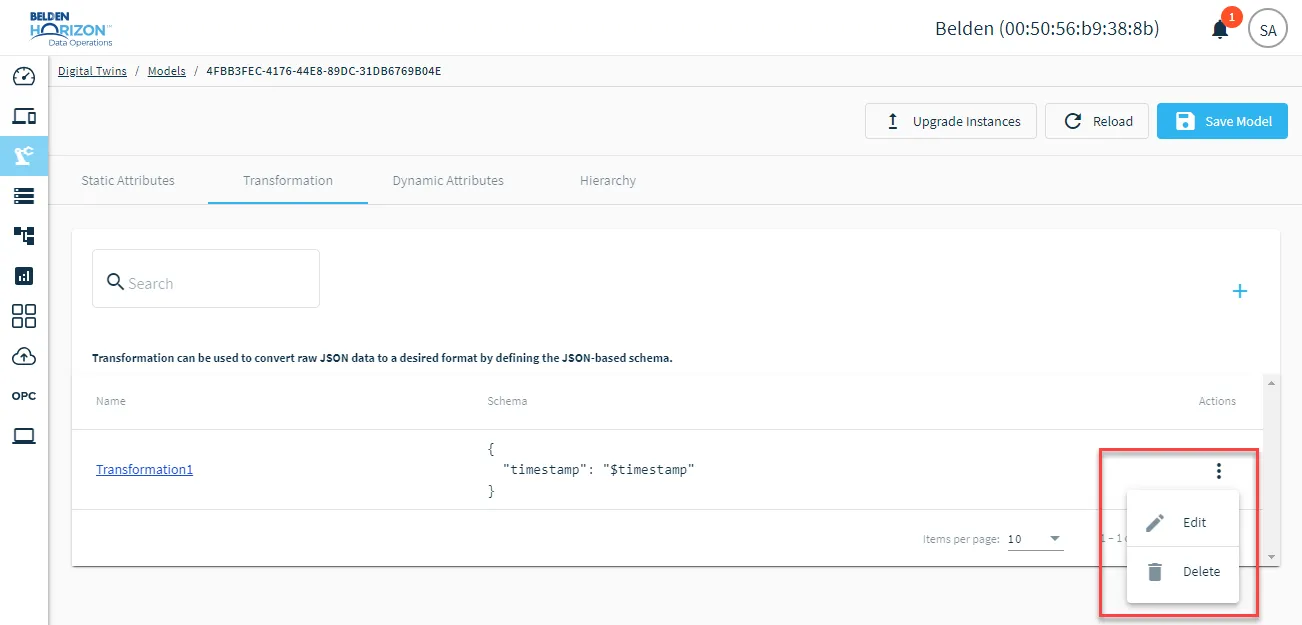

To edit or delete a schema, click the Action menu for the schema and select an option.

Action menu for data transformation schema

Dynamic Attributes

Manage variable data in the model from the Dynamic Attributes tab. You have the option of adding a schema ID, which can be used to map dynamic attributes one-to-one for data transformation.

Note: You can create up to 2000 dynamic attributes.

To add a dynamic attribute:

Click the Add item icon.
Add Dynamic attribute icon
In the Name field, enter a name for the attribute.
(Optional) Enter values for Unit and DataType.
(Optional) If you've created data transformation schemas, select one from the SchemaID field.

If you need to filter existing attributes, you can use the search field.

Search field for dynamic attributes

Import Dynamic Attributes

To import dynamic attributes, create a CSV file with the following headers:

ModelName
InstanceName (optional)
Topic (optional)
Name (optional)
Unit (optional)
DataType (optional)
SchemaID (optional)

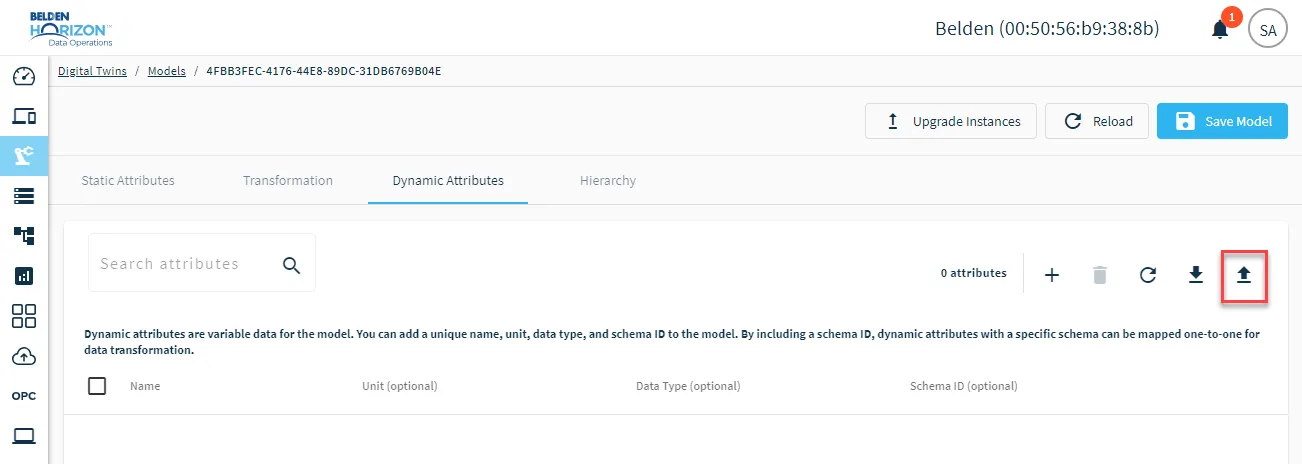

After creating the file, click the model tile, navigate to Dynamic Attributes, and click the Import Attributes icon.

Import Attributes icon

Export Dynamic Attributes

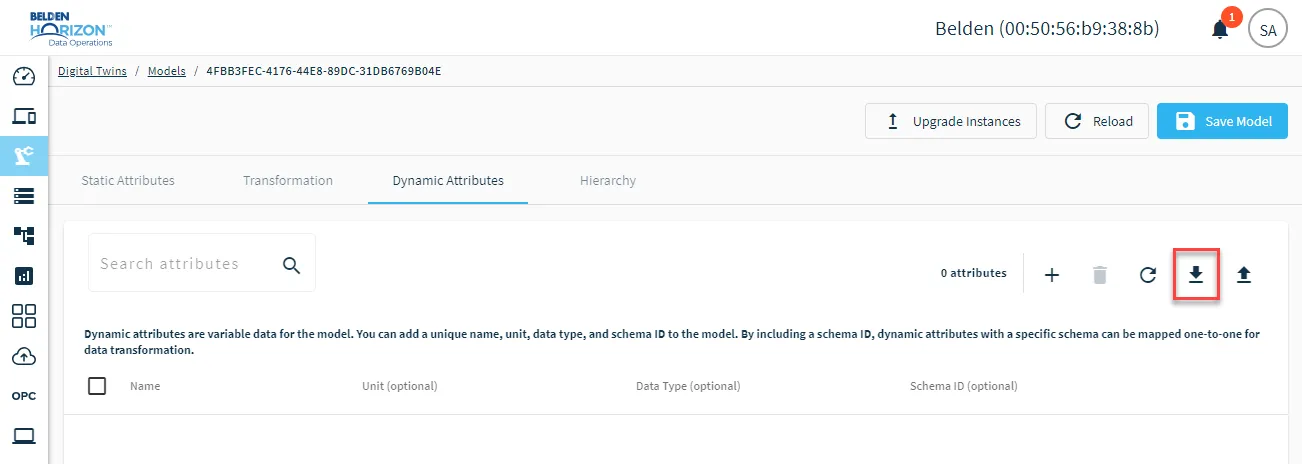

To export a CSV file of existing dynamic attributes, click the Export Attributes icon.

Export Attributes icon

Hierarchy

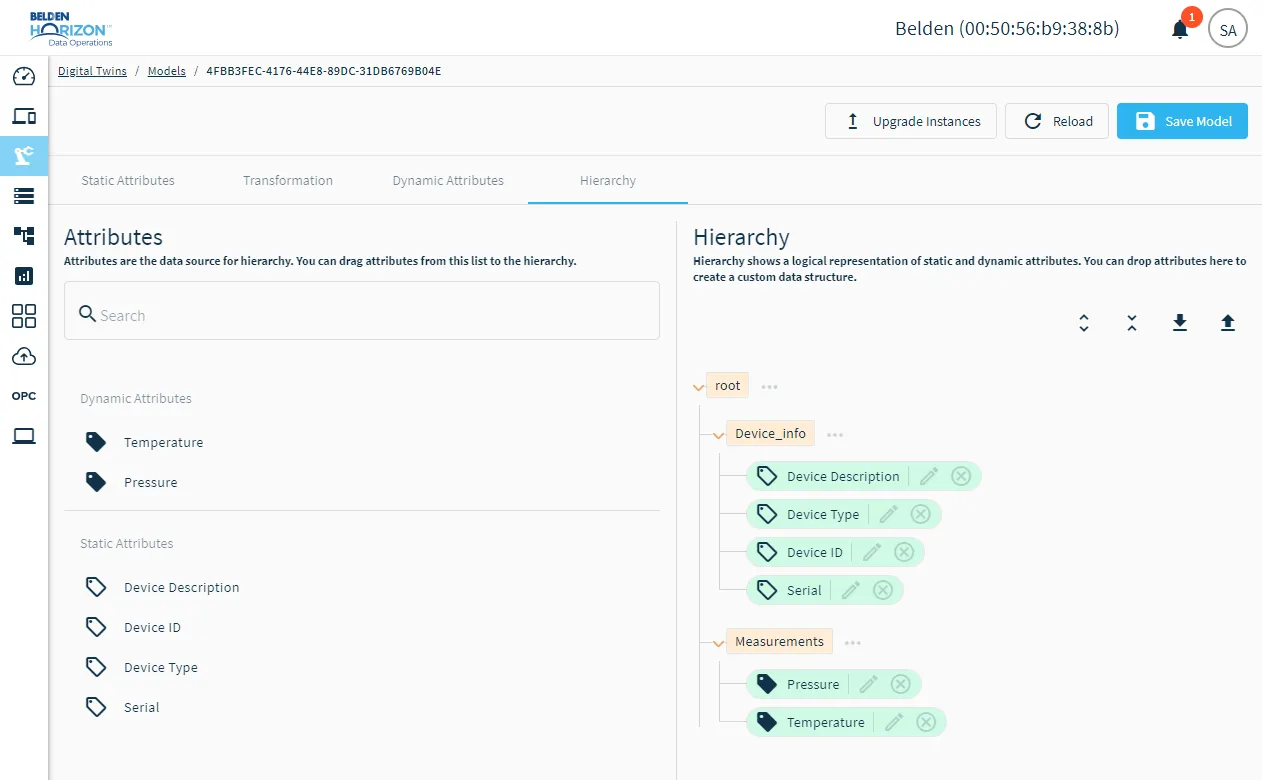

Use the Hierarchy tab to create a custom data structure for the model.

Hierarchy tab

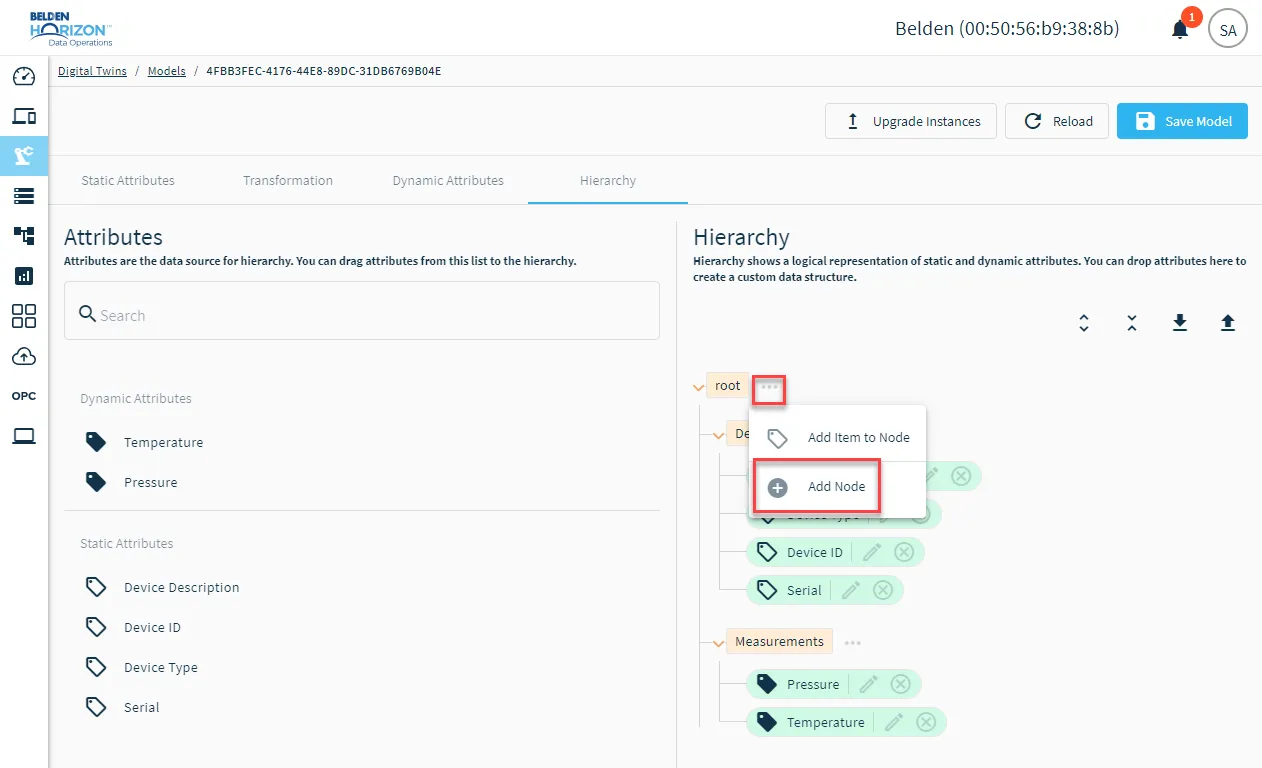

To create a category for the hierarchy, click the Action menu icon for root and select Add Node.

Add Node icon

To add attributes to the hierarchy, do one of the following:

Drag and drop attributes from the left-hand list to the canvas under the appropriate category.

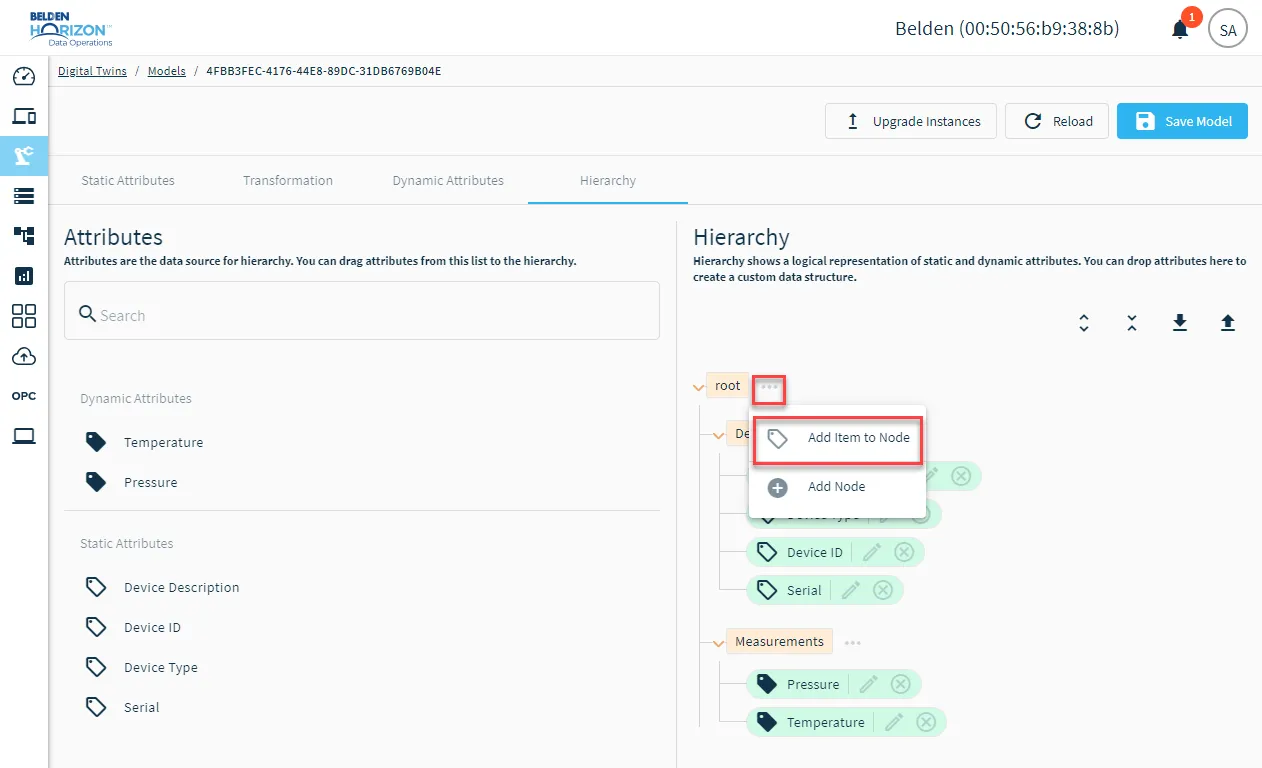

Click the Action menu for a category and select Add item to Node. Then, select the attribute to add.

Add item to Node icon

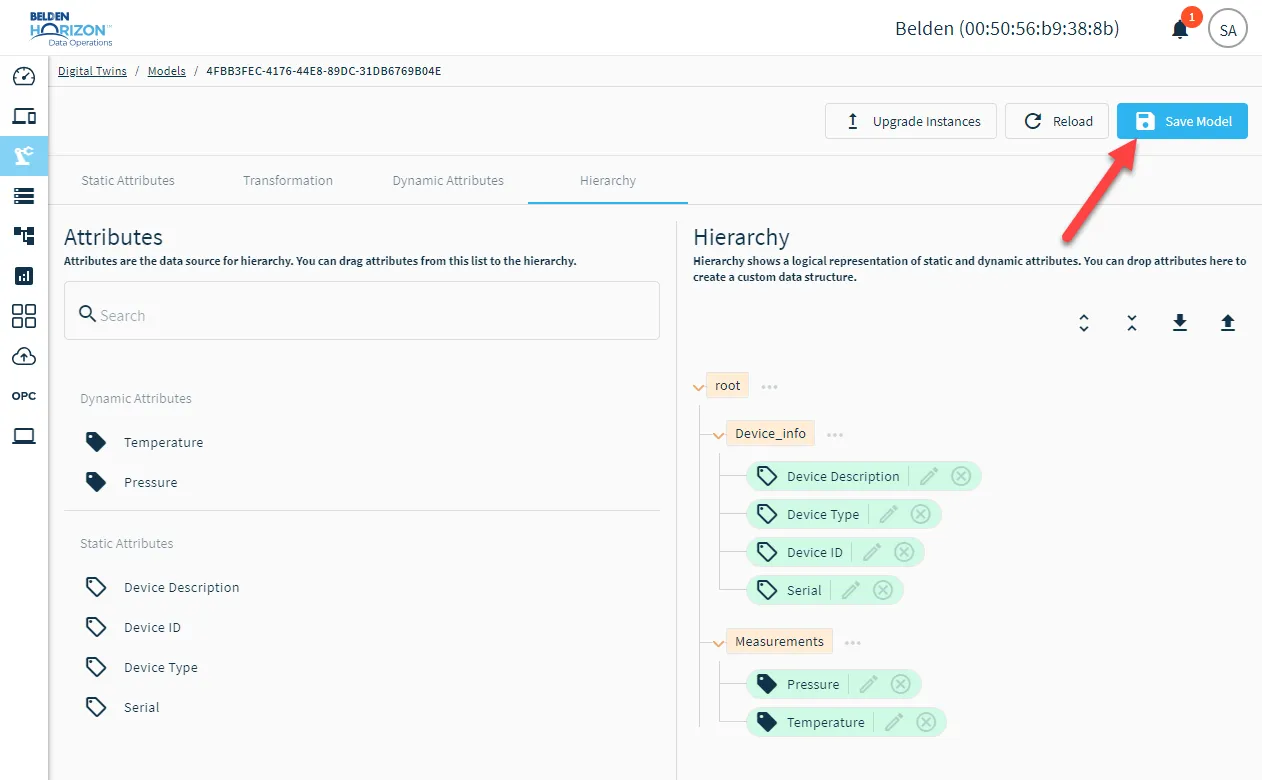

When done configuring the hierarchy, click Save Model.

Add item to Node icon

Rename Nodes

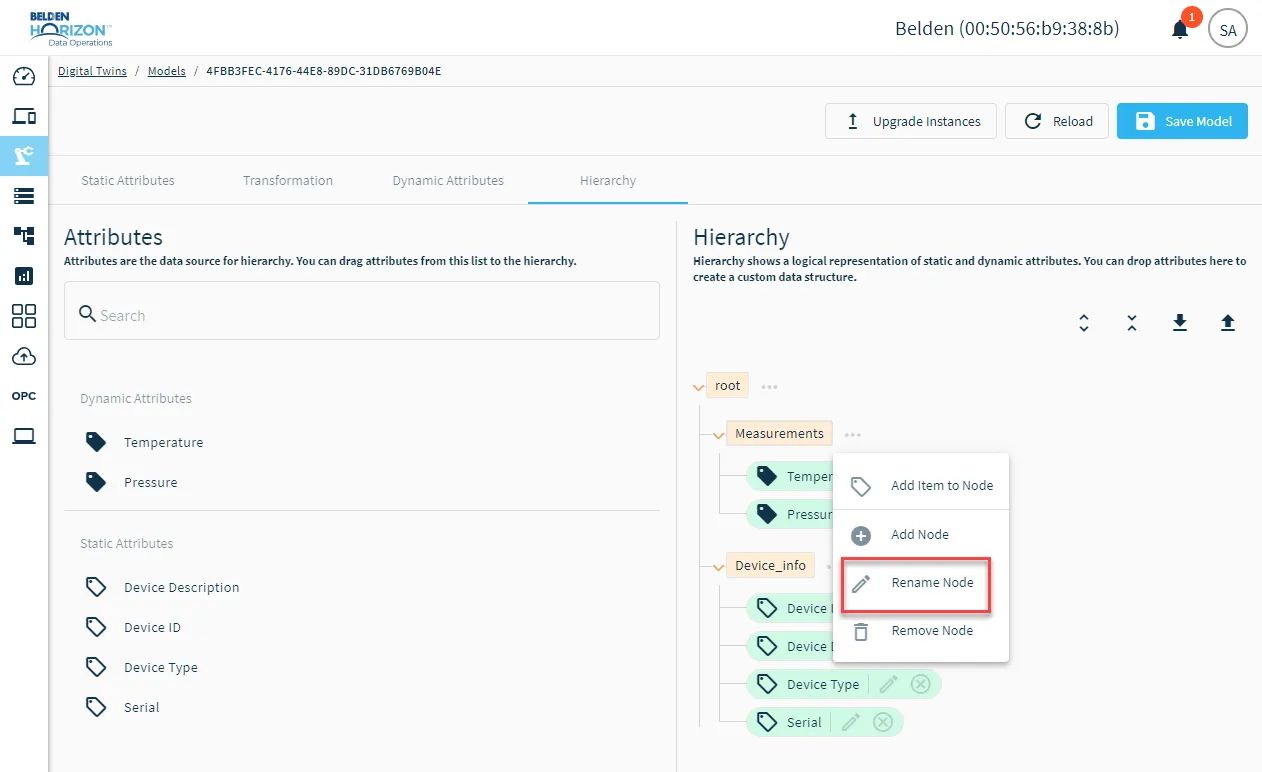

To rename nodes and attributes added to nodes, click the Rename Node and Rename Item icons.

Rename Node icon

Import Hierarchies

To import a CSV file of a hierarchy, create a CSV file with the following headers:

ID
ModelID
Position: Enter the position of the attribute in the hierarchy.
ParentID: If the attribute is under a node/category, enter the ParentID of the node. To get the ParentID, create a new node, export the hierarchy, and then refer to the ParentID column.
Name: The name of the attribute.
IsFolder: If it is an attribute, the value is FALSE. If it is a node, the value is TRUE.
AttributeID
AttributeType

Import Hierarchy icon

Export Hierarchies

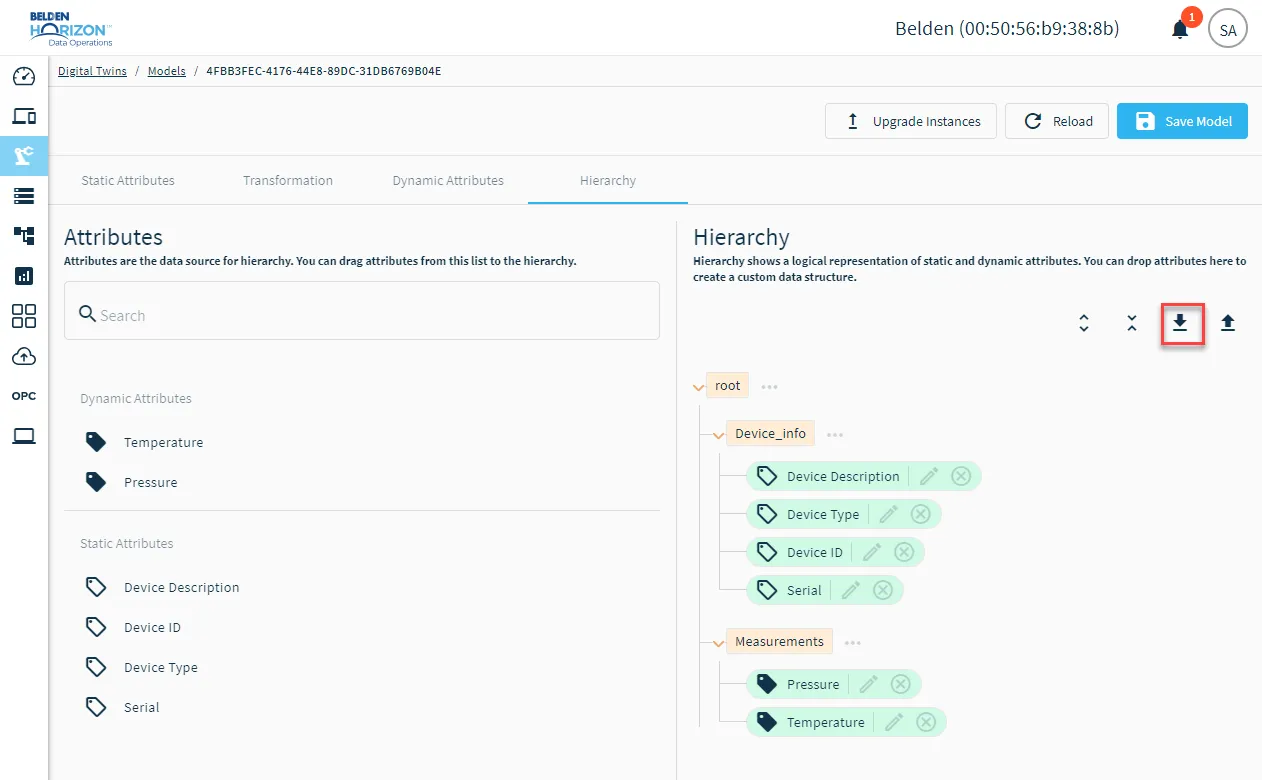

To export a CSV file of an existing hierarchy, click the Export hierarchy icon.

Export Hierarchy
